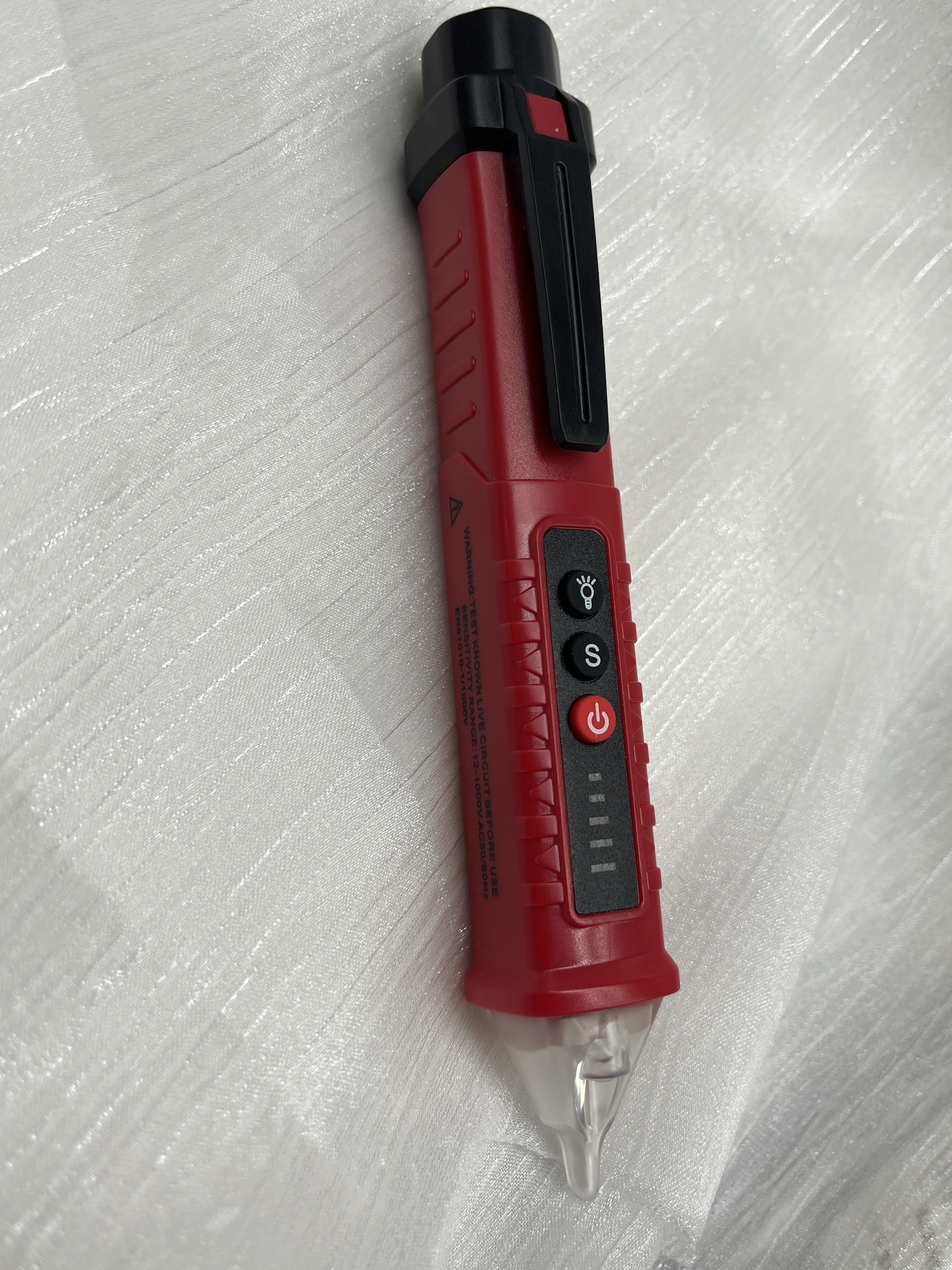

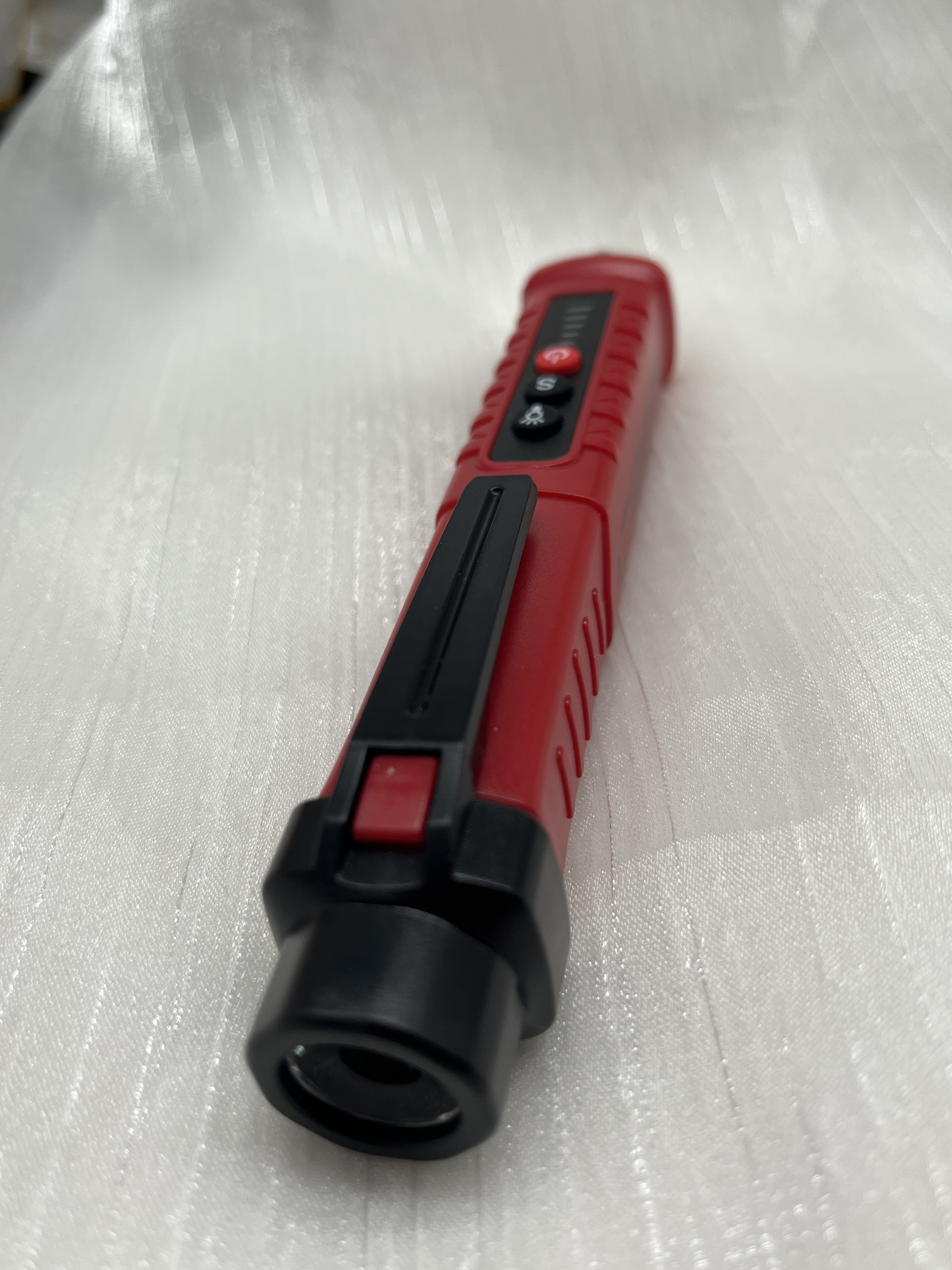

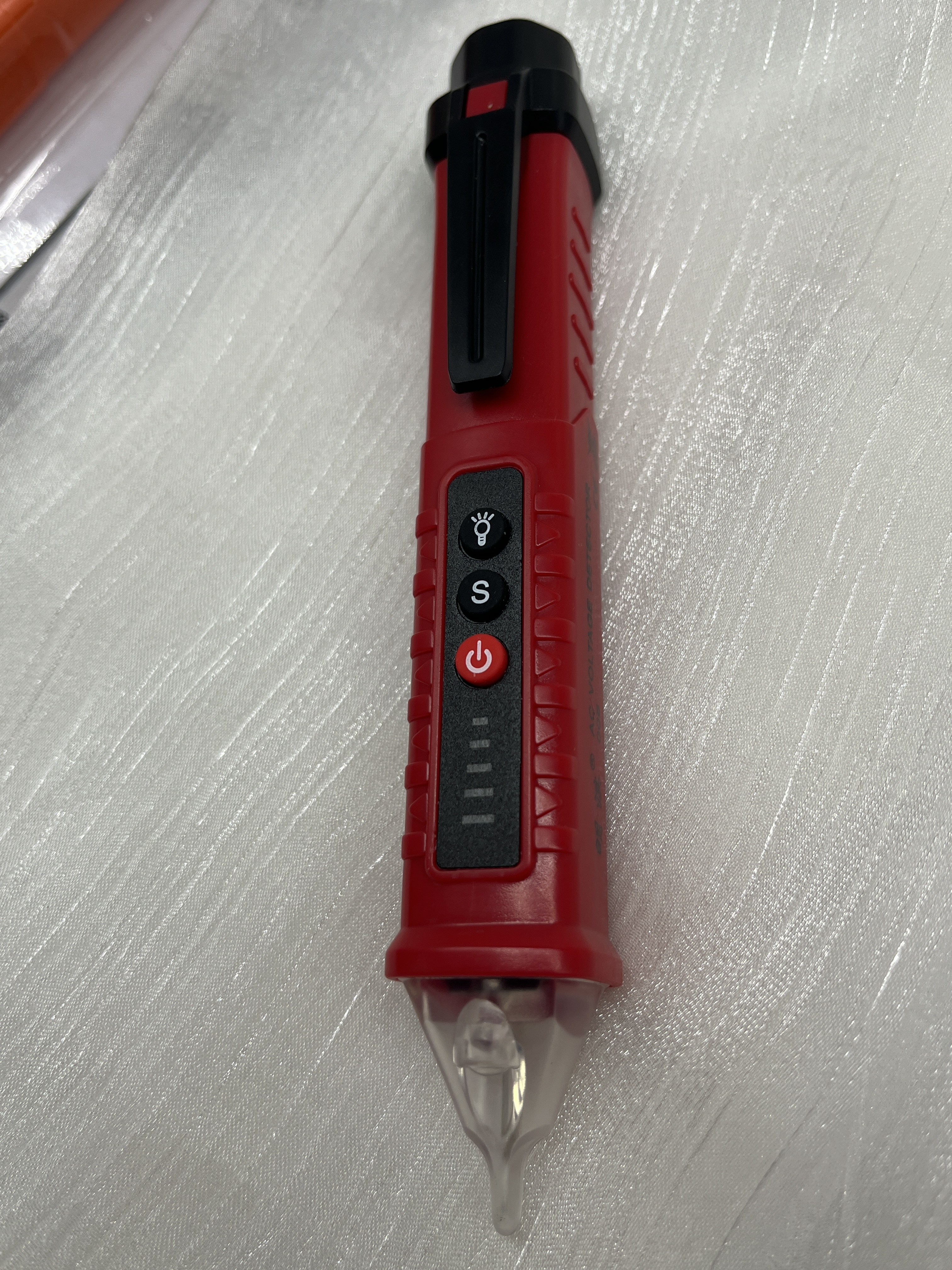

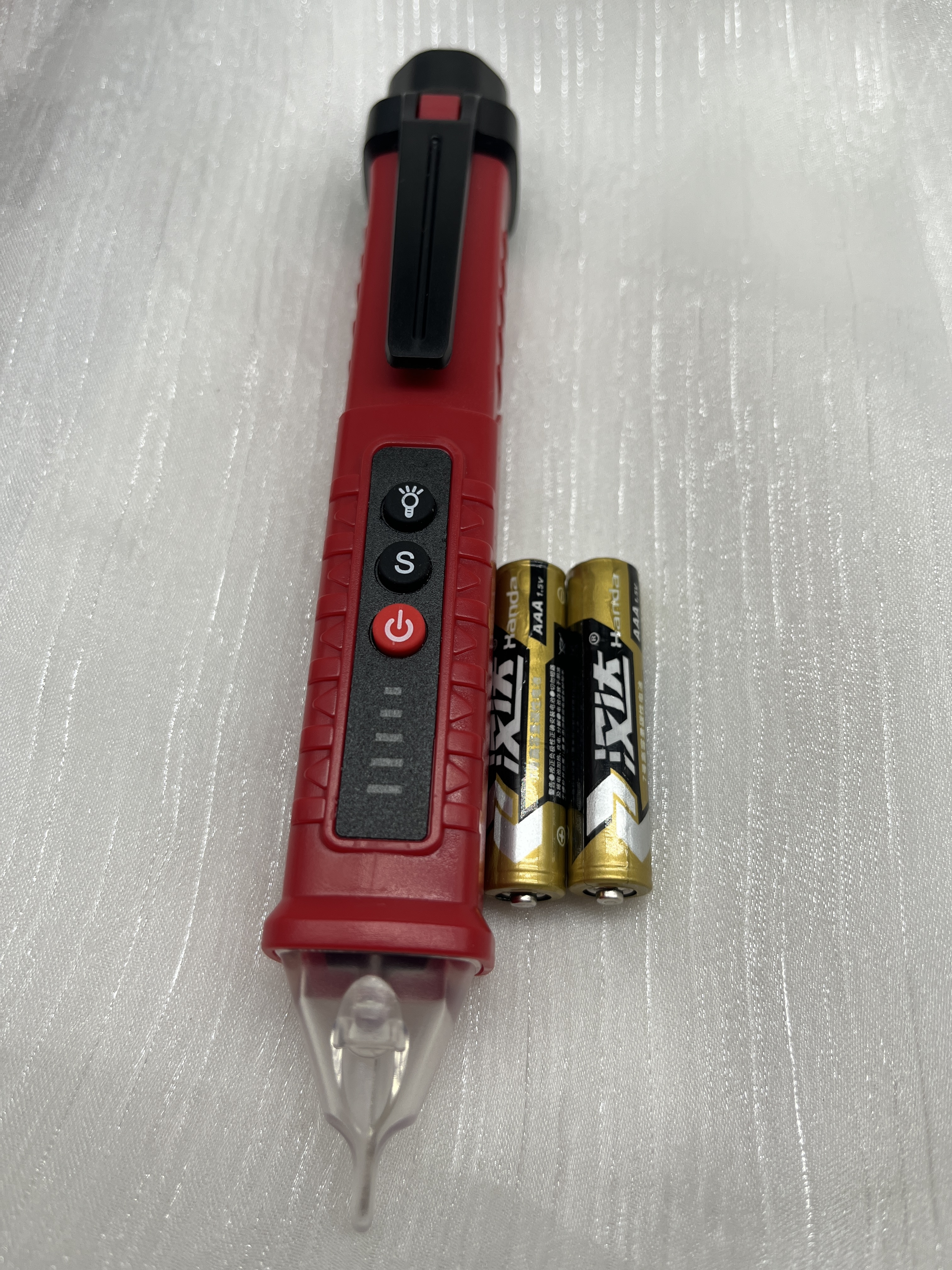

Red-Handled Voltage Detector: A Precision Tool for Electrical Diagnostics
In modern electrical maintenance, the Red-Handled Voltage Detector has become an essential tool for technicians to perform precision diagnostics. This handheld device combines ergonomic design with advanced sensing technology to provide accurate voltage measurements in complex electrical systems.
Key Features
High Visibility Design: The bright red handle serves a dual purpose - it meets ISO safety standards for tool coloring while ensuring quick identification in cluttered work environments.
Precision Sensing: Equipped with high-impedance input circuitry (typically >10MΩ), the detector minimizes circuit loading during measurements, which is critical for sensitive electronic diagnostics.
Multi-Range Capability: Modern versions feature auto-ranging from 12V to 1000V AC/DC with a basic accuracy of ±1%, supported by True RMS measurement technology.
Diagnostic Applications
Fault Location: The detector's fast response (<0.5s) non-contact mode helps identify live wires through insulation, reducing the risk of arc flash during panel inspections.
Waveform Analysis: Advanced models integrate with oscilloscopes via Bluetooth, enabling technicians to analyze harmonic distortion in real time (THD <3%).
Comparative Diagnostics: Built-in memory stores up to 100 measurement profiles, enabling trend analysis of intermittent faults.
Safety Enhancements
The tool exceeds IEC 61010 CAT IV standards with the following features:
Double-insulated probe rated for 3000V transient protection
Audible/visual alarms trigger at >30V (adjustable threshold)
Automatic self-test with IP54 dust/water protection
Industry Impact
A 2023 EPRI study showed that these detectors improve diagnostic efficiency by 40% in PV system troubleshooting, particularly in differentiating between ground faults (0-5V range) and arc faults (typically >15V).
As electrical systems become more complex, the Red Handle Voltage Detector has evolved from a simple verification tool to a comprehensive diagnostic platform, incorporating AI-assisted pattern recognition in its latest version.
