Ergonomic Triangular Handle:
Provides a secure, non-slip grip that naturally prevents the tool from rolling off surfaces.
Offers enhanced comfort and control during use, reducing hand fatigue.
The elongated handle allows for a safe distance between the user's hand and the testing point.

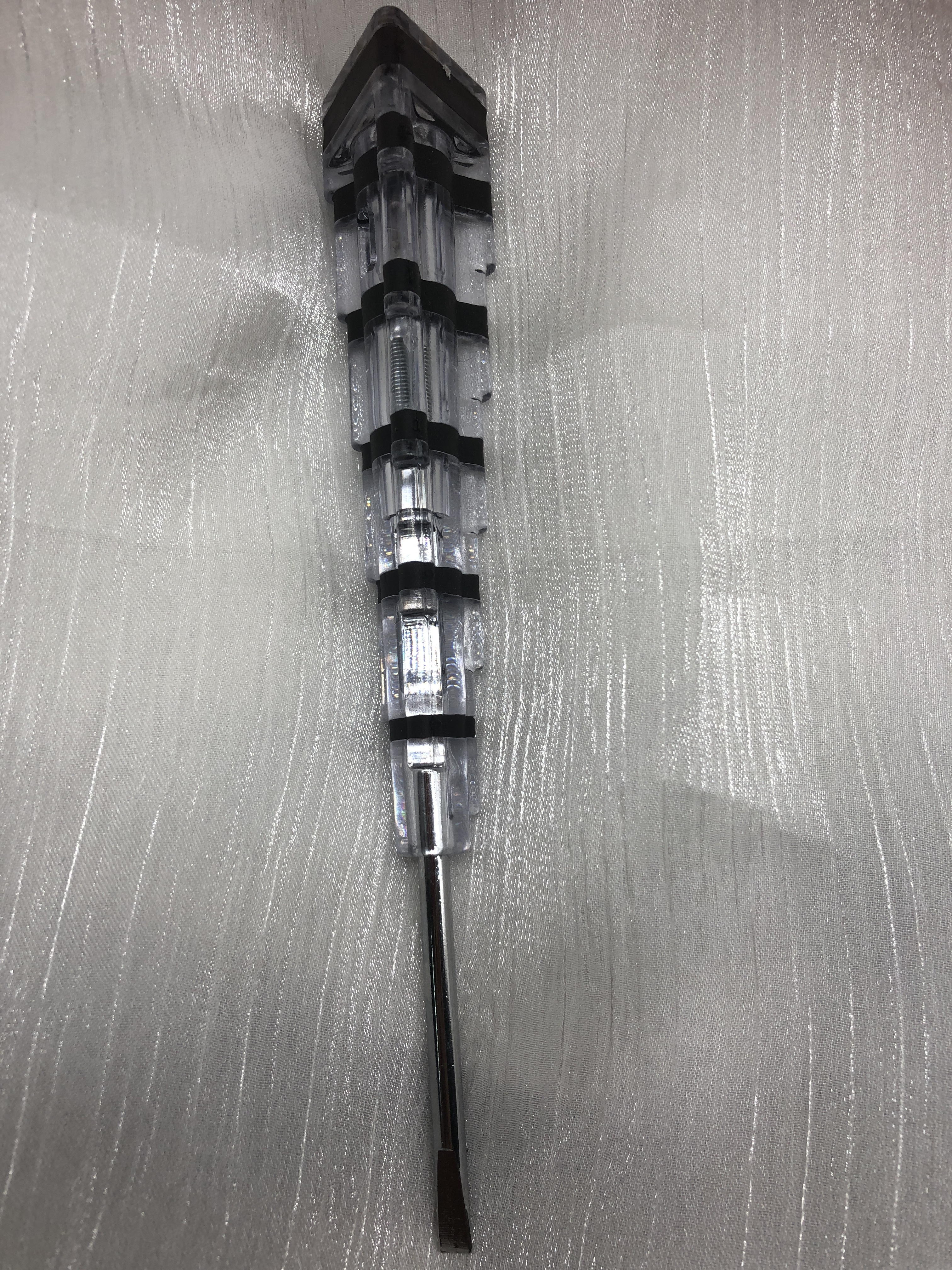

Flat-Blade Screwdriver Tip:
Made of hardened steel, suitable for making contact with terminals, sockets, and wires.
Can also be used for minor screw-driving/loosening tasks on electrical terminals (when power is confirmed OFF).
Standard size (typically approx. 3-5mm wide) fits common screw heads.
Neon Bulb Indicator:

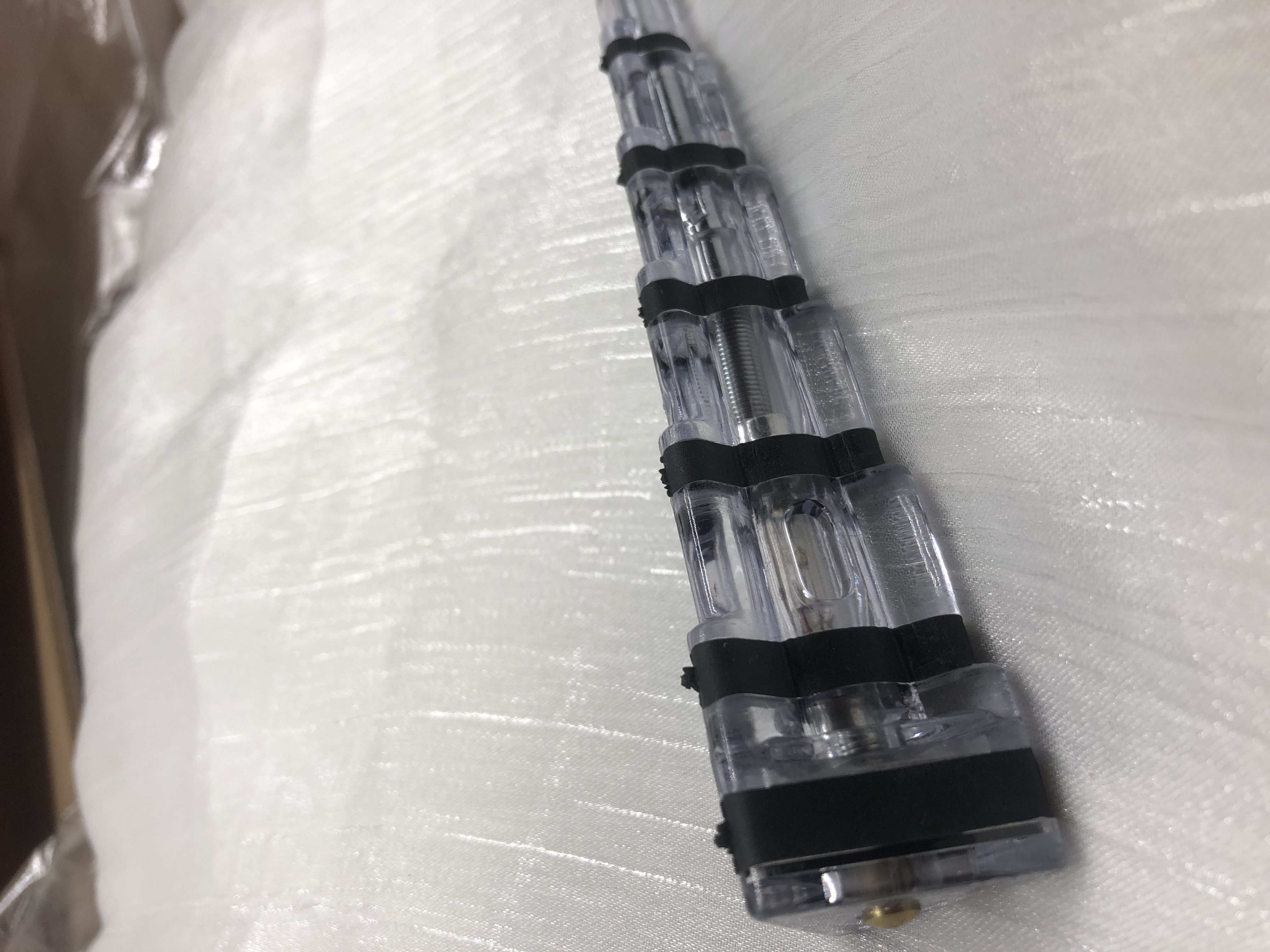

The core detection element. A small neon lamp is housed within the transparent handle.

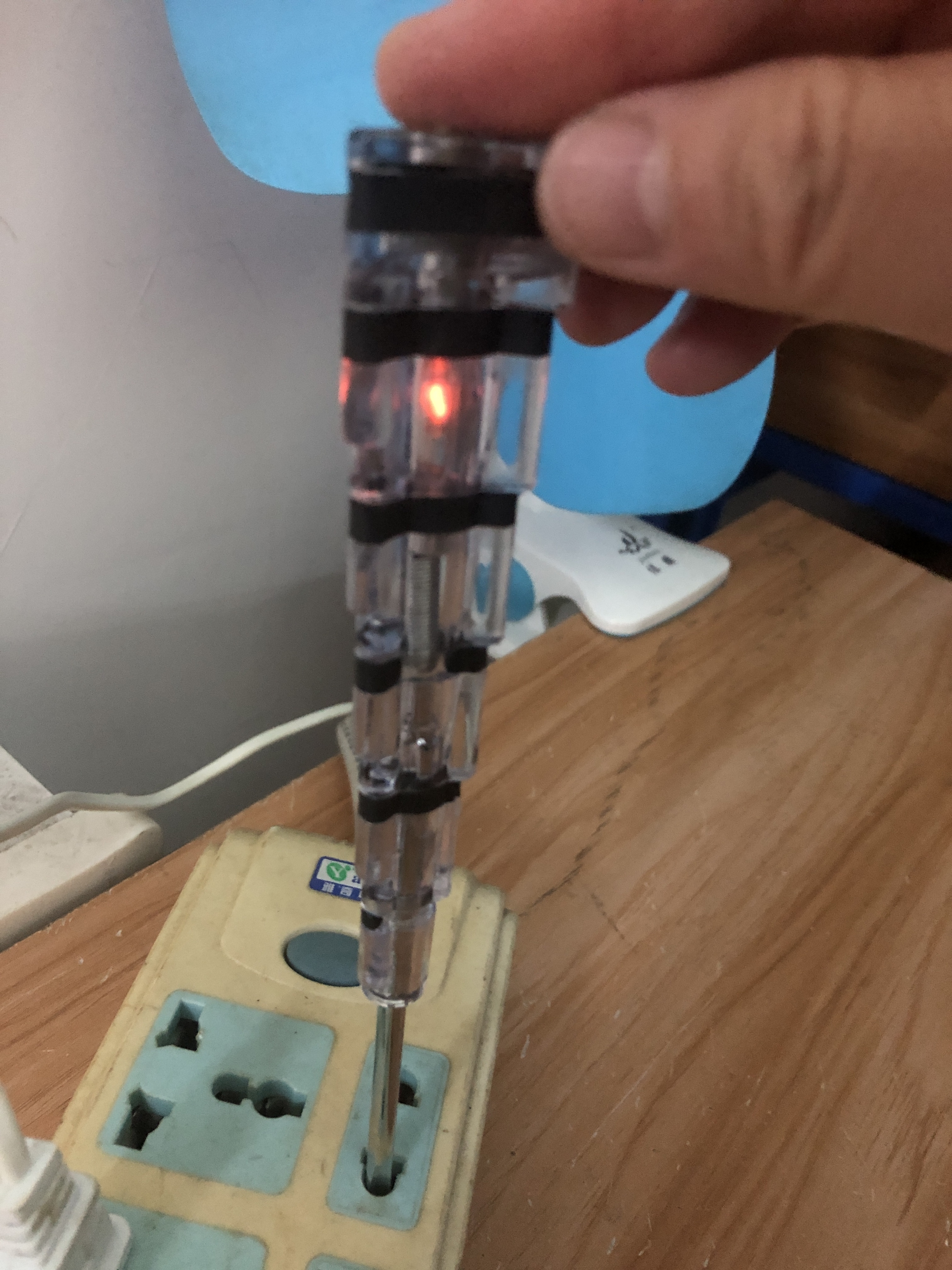

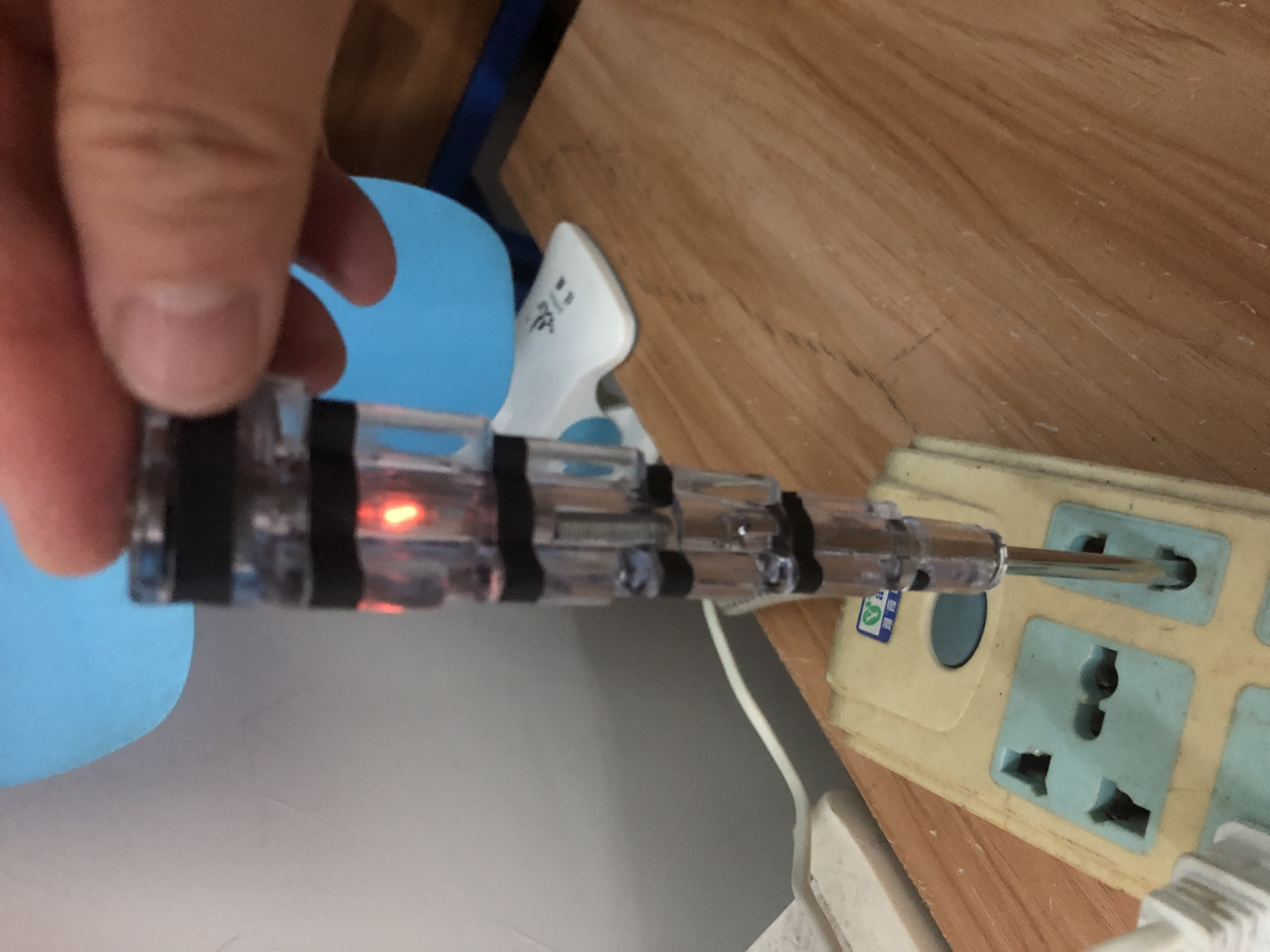

Illuminates brightly when the tip touches a live AC voltage source (typically 90V-500V) and the user completes the circuit by touching the metal cap at the end.
Current-Limiting Resistor:
A high-value resistor (usually several megaohms) is connected in series with the neon bulb inside the shaft.
Critical for safety: It drastically limits the current flowing through the tester and the user's body to a safe, microampere level during proper operation.

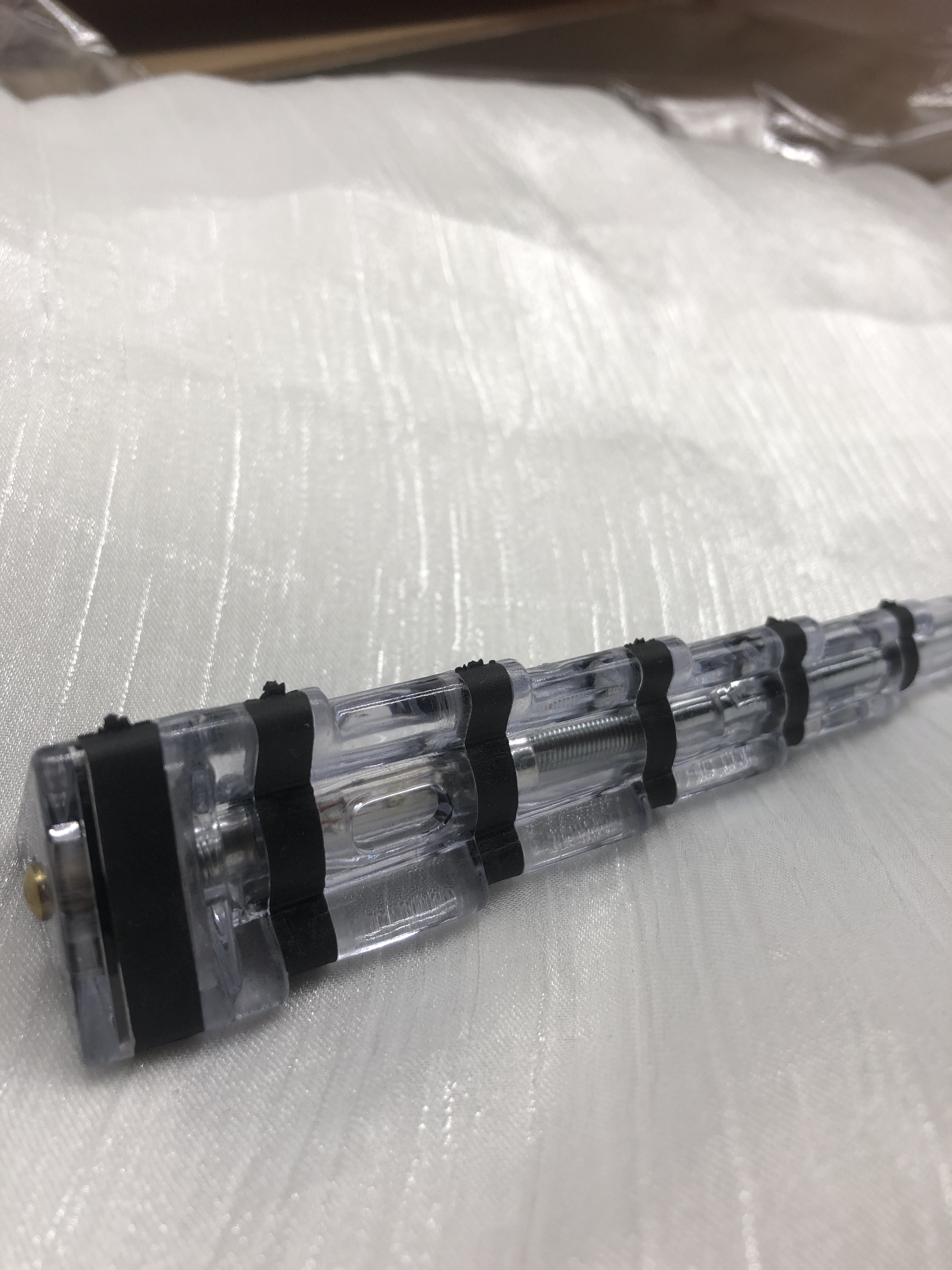

Transparent Insulated Body:
The shaft and handle are made of durable, clear or translucent insulation material (like polycarbonate).
Allows clear visibility of the neon bulb.
Provides a protective barrier against accidental contact with live parts.

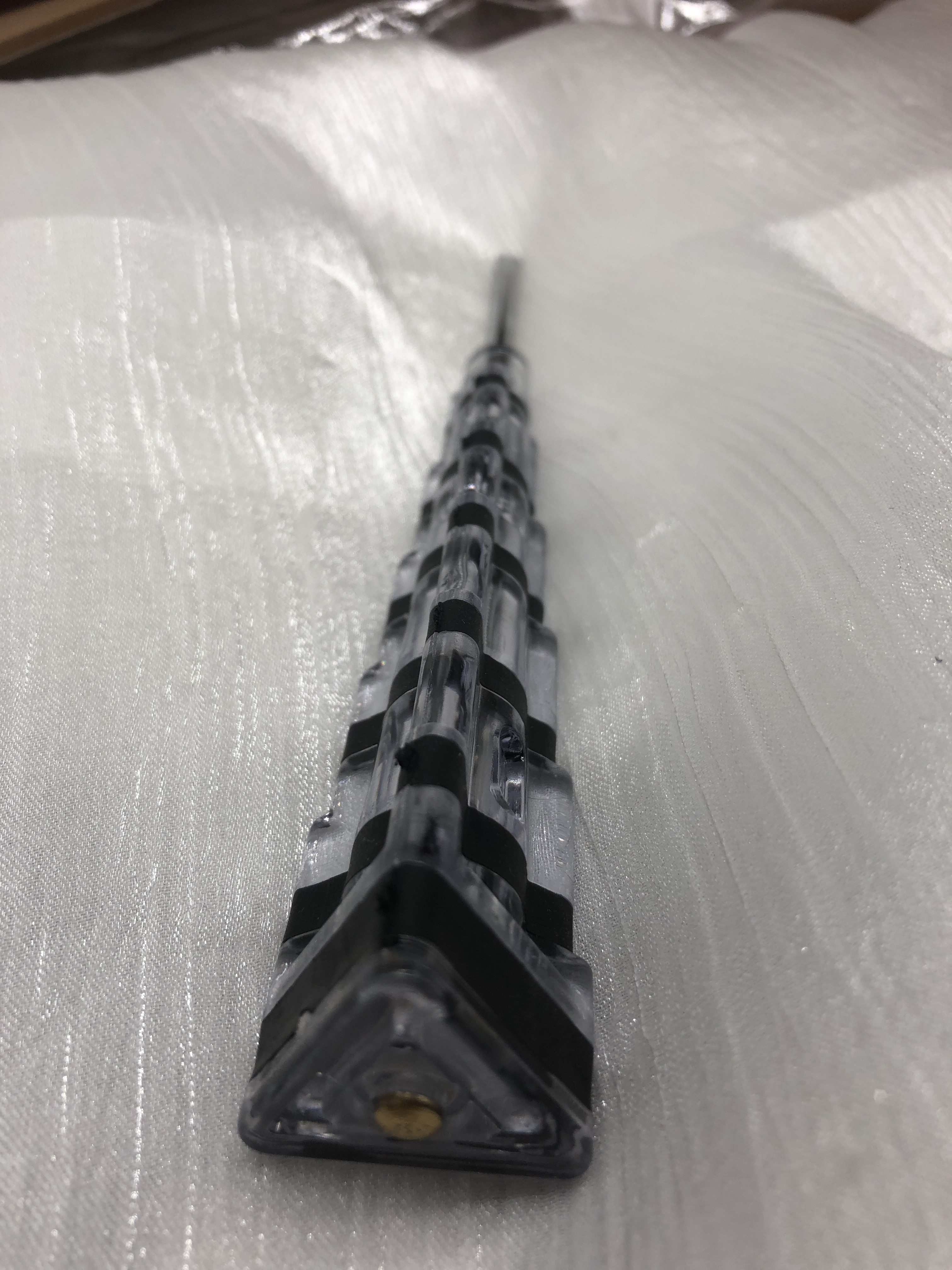

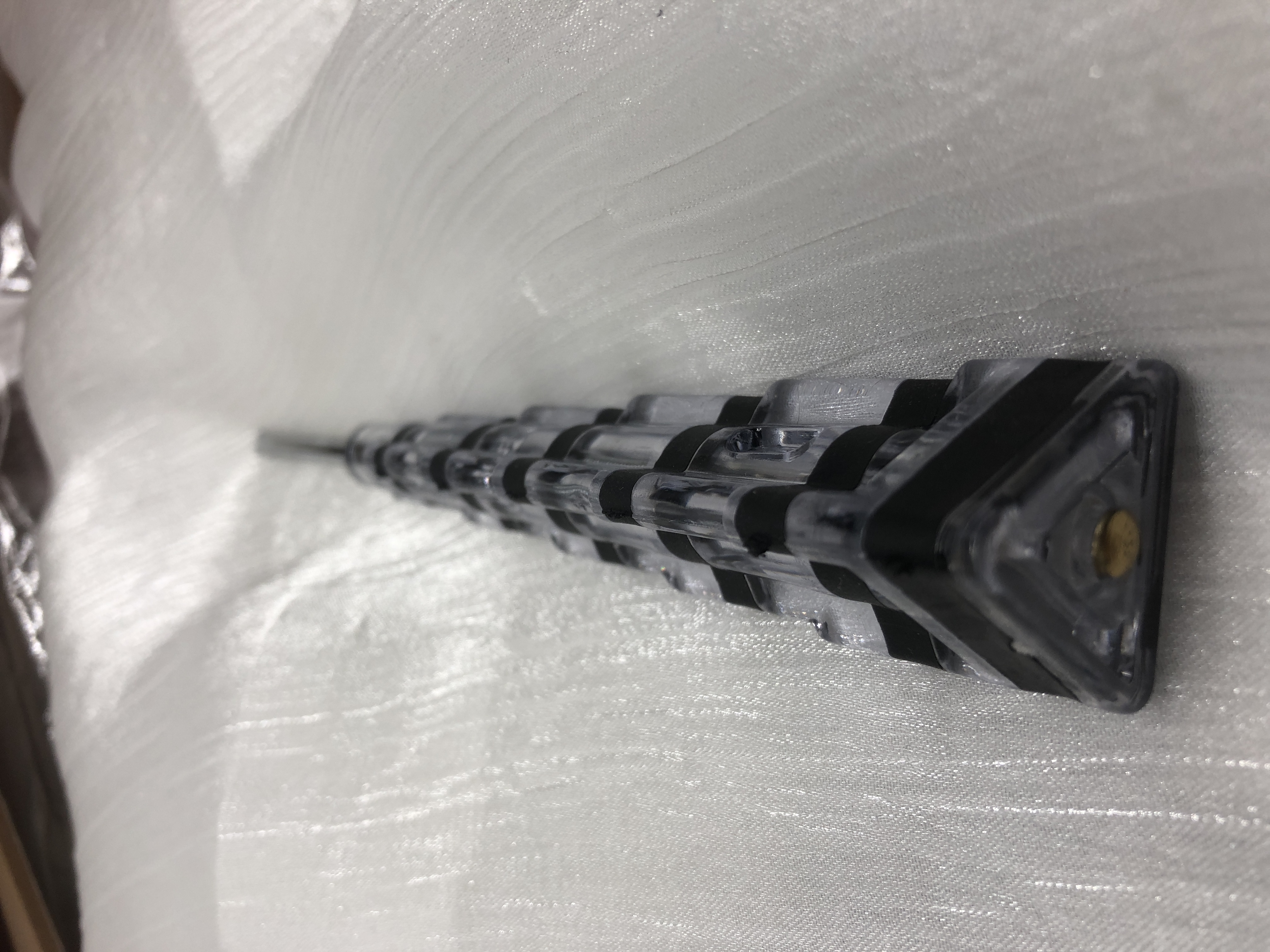

Metal End Cap/Contact Plate:
Located at the very end of the handle. The user must touch this with their finger to complete the internal electrical circuit for the neon bulb to light.
Operating Principle:
The tester operates on the principle of capacitive coupling and very low current flow. When the tip contacts a live AC voltage and the user touches the end cap, a tiny current (limited by the internal resistor) flows through the tester, through the user's body, and to earth ground. This current is sufficient to excite the neon gas inside the bulb, causing it to glow, but is far below the danger threshold.
Typical Specifications:
Voltage Range: 90 ~ 500 Volts AC (50/60 Hz)
Insulation: Double insulated
Compliance: Generally meets IEC/EN 61010 standards for safety.

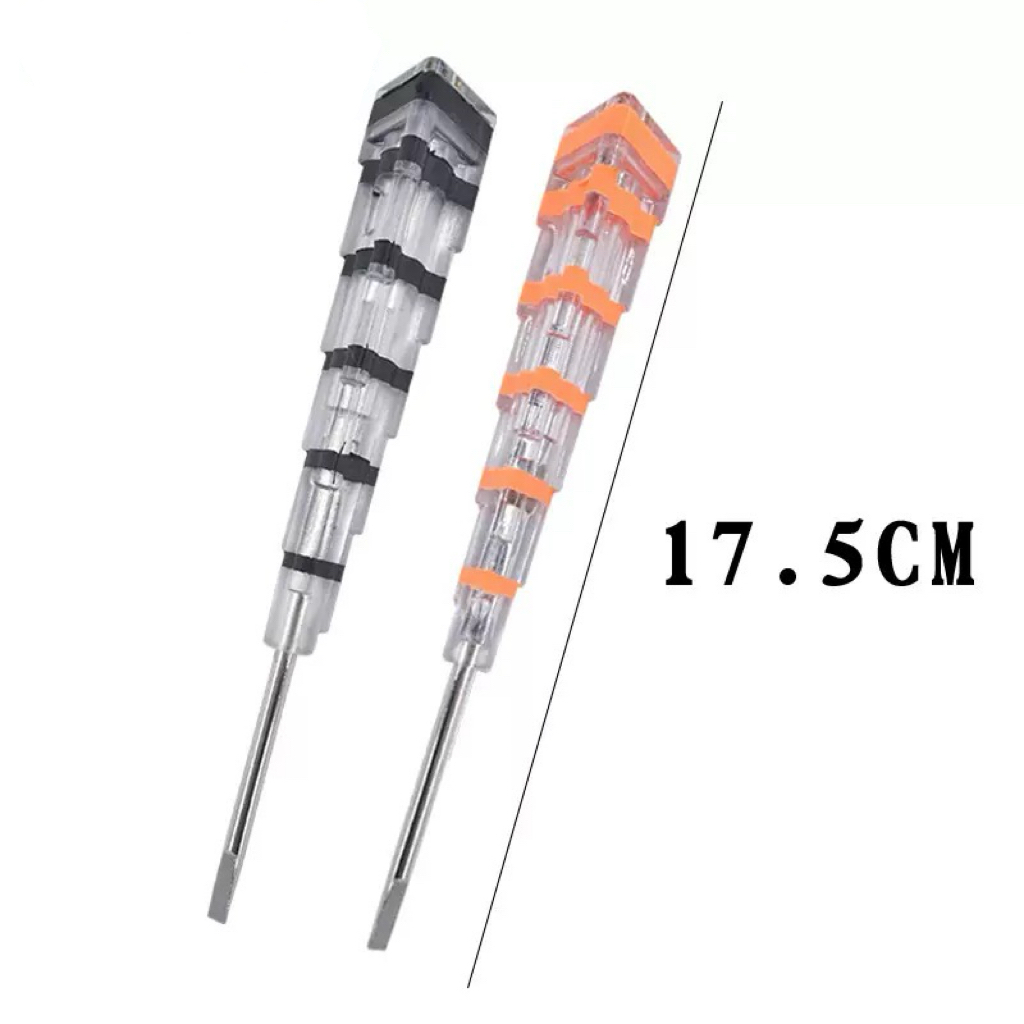

Length: Approx. 150mm - 200mm (total)
Primary Applications:
Quickly checking if a wire, outlet, or terminal is live (energized).
Identifying the phase (hot) wire in switches, sockets, or fuse boxes.
Basic continuity testing (for some models with additional circuits).
Verifying the absence of voltage before starting electrical work (always confirm with a certified multimeter or prover on a known live source first).
Safety Warnings & Usage Notes:
Always test on a known live circuit first to verify the tester is functioning correctly.
Do not use on voltages exceeding its rating.
Ensure fingers only touch the designated metal end cap during testing, never the metal tip or any exposed part of the shaft.
This is a basic indicator, not a precision measuring device. It indicates voltage presence, not the exact value.
For critical safety, especially before working on circuits, always use a multimeter or a non-contact voltage tester (NCV) in conjunction with this tool for redundant verification.
Replace if the body is cracked, damaged, or if the neon bulb fails to light on a known live source.
This triangular-grip neon tester is a classic, simple, and cost-effective tool for electricians, technicians, and homeowners for initial voltage checks, valued for its durability, clear indication, and improved ergonomics.
