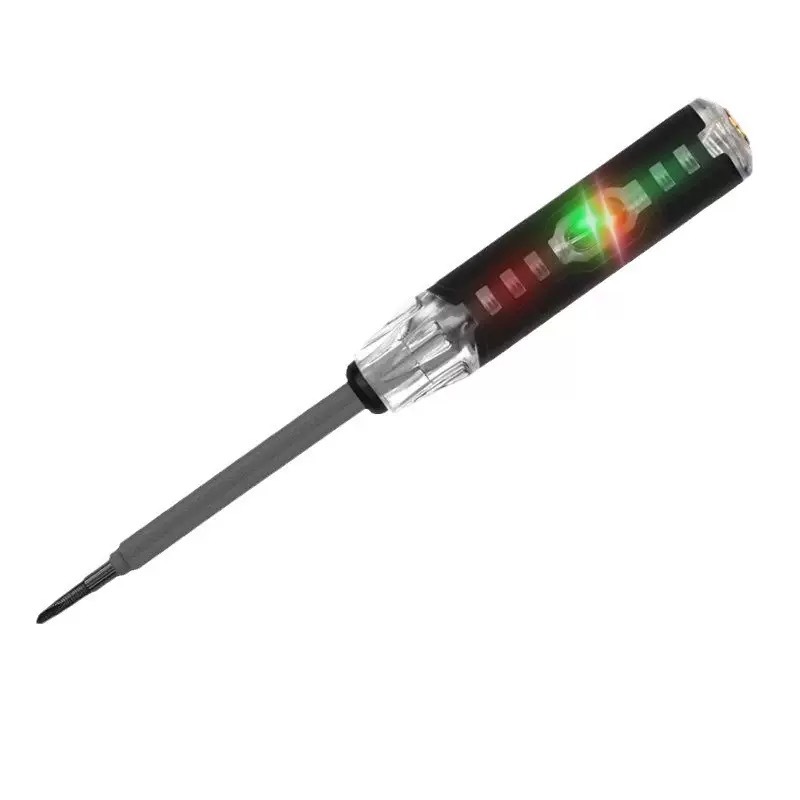

Product Name: Professional Multi-Function Electrician's Test Pencil & Screwdriver Set

Tagline: Your All-in-One Tool for Safe Electrical Testing and Precision Screwdriving.

1. Product Overview

This Professional Multi-Function Electrician's Test Pencil is an essential, versatile tool designed for electricians, technicians, DIY enthusiasts, and homeowners. It ingeniously combines a reliable voltage tester with a practical dual-head (flat/Phillips) screwdriver, consolidating critical functions into a single, compact, and durable device. It is engineered for safety, convenience, and efficiency when working with electrical circuits, outlets, switches, and appliances.

2. Key Features & Functions

• AC Voltage Detection (Primary Function):

  • Non-Contact Voltage Sensing (NCV): Allows for safe, non-contact detection of live AC voltage in wires, cables, outlets, and circuit breakers through insulation simply by bringing the tip close to the testing point. An audible beep and/or an LED indicator will alert the user.

  • Contact Voltage Testing: Features a neon light or a bright LED (depending on the model) that illuminates upon contact with a live conductor, providing a clear visual indication of the presence of AC voltage.

• Built-in Screwdriver Function:

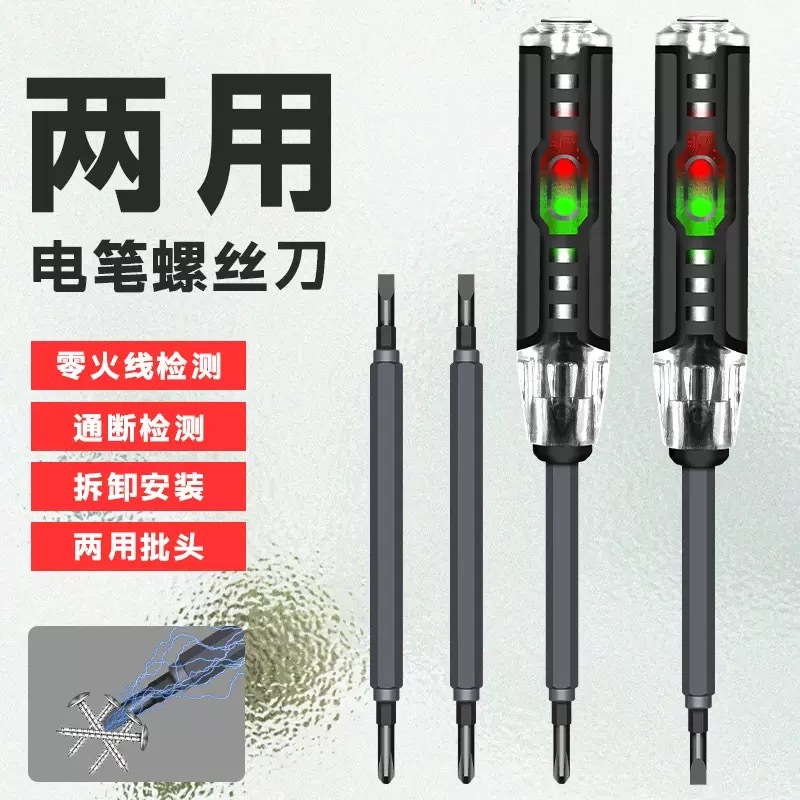

  • Dual Heads: Integrates a flat-head (slotted) and a cross-head (Phillips) screwdriver bit, making it perfect for installing outlets, light switches, faceplates, and tightening terminal screws on electrical devices without needing a separate tool.

  • Durable Construction: The screwdriver tip is typically made of hardened chrome-vanadium steel (CR-V) for superior strength and resistance to wear and stripping.

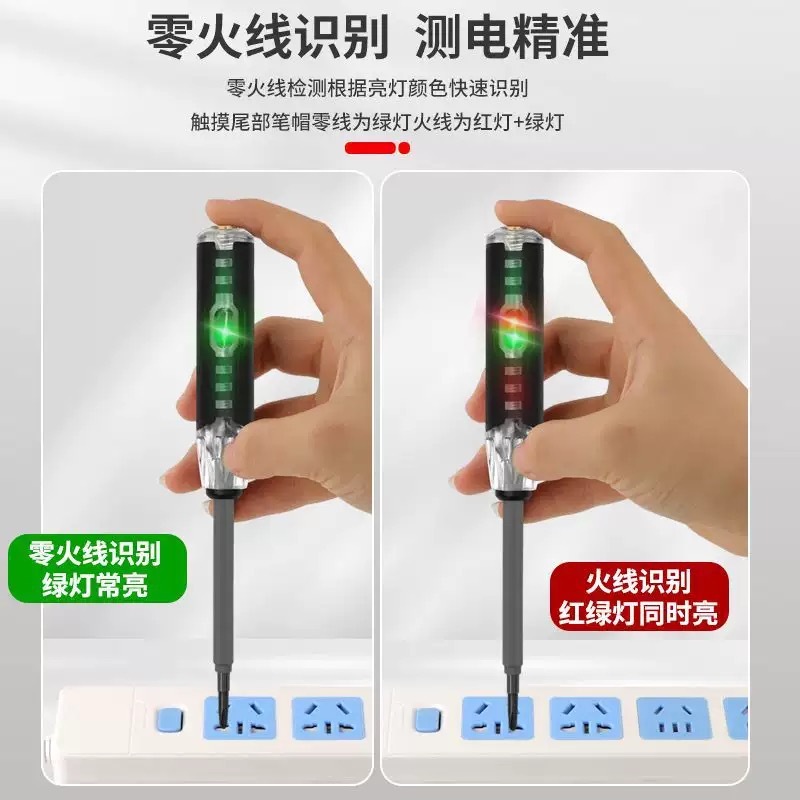

• Line Polarity Check: Can help distinguish between Live (Line/Hot) and Neutral wires in some AC systems when used correctly.

• Circuit Continuity Testing: Many models include a built-in circuit for checking continuity (complete path for current flow), helping to identify broken wires, faulty fuses, or poor connections. This is usually indicated by a light and/or sound.

• Cable Breaker / Wire Tracker (Basic Function): Can assist in tracing and identifying specific circuits behind walls or in junction boxes.

3. Technical Specifications

• Voltage Detection Range: Typically 12V - 250V AC or 100V - 500V AC (Please check the specific model's rating).

• Indicator: Neon bulb or super-bright LED with a built-in resistor for safety. Advanced models feature multi-stage LED bars to indicate approximate voltage strength.

• Audible Alert: Buzzer sound for NCV and continuity detection.

• Screwdriver Bits: Standard sizes are often ~3mm (Phillips #1/2) and ~4mm (Flathead).

• Material:

  • Body: High-quality, durable ABS plastic with anti-slip grip.

  • Tip & Bits: Hardened Steel or Chrome Vanadium (CR-V).

• Safety Standards: Complies with international safety standards (e.g., IEC, CAT II, CE, RoHS) for its rated voltage.

4. How to Use the Test Pencil

A. For Voltage Detection:

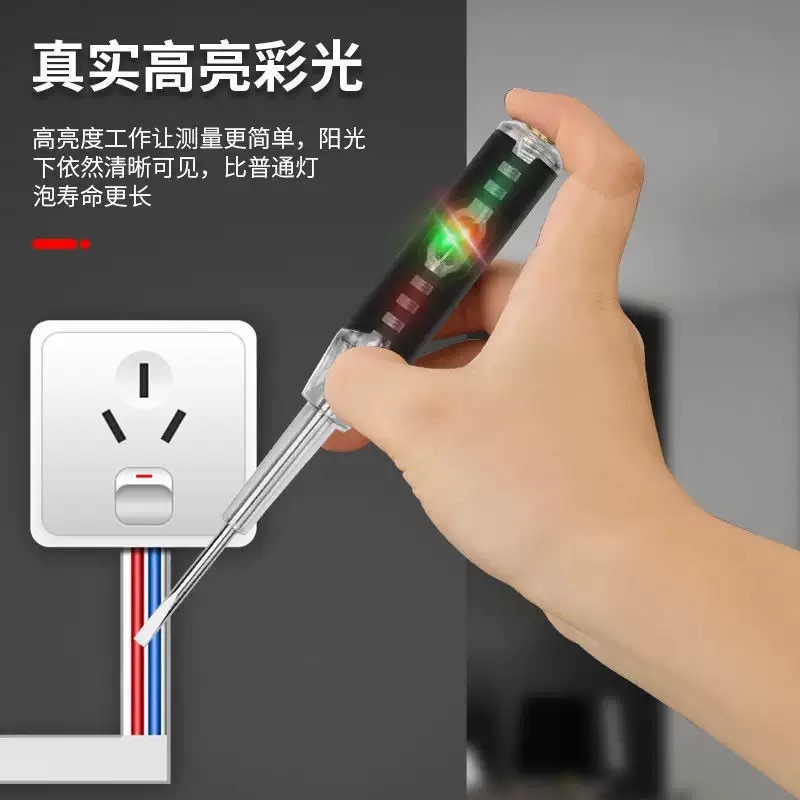

1. Contact Method: Place your thumb on the metal contact at the end of the pen. Touch the screwdriver tip to the conductor you want to test (e.g., a slot in an outlet). If the internal light illuminates, voltage is present.

2. Non-Contact Method (NCV): Turn on the NCV function (if applicable). Hold the pen close to the insulated wire or outlet. The pen will beep and light up if an AC voltage field is detected.

B. As a Screwdriver:

1. Simply use the integrated flat or Phillips head to drive or remove screws as you would with any standard screwdriver.

C. For Continuity Test:

1. Turn the function selector to continuity mode (if available).

2. Touch one tip to each end of the wire or component. A continuous tone and light confirm a complete circuit.

5. Safety Precautions & Notes

• Always verify the tool is working correctly before use by testing it on a known live circuit.

• Understand the limitations. This tool indicates voltage presence but is not a substitute for a multimeter for measuring exact voltage values.

• Ensure your hands are dry and you are standing on a dry surface when testing.

• Do not use the tool on voltages exceeding its rated capacity.

• Regularly inspect the tool for any signs of damage, cracks, or wear.

6. Why Choose This Multi-Function Test Pencil?

• Efficiency: Combines two essential tools into one, saving time and reducing the number of tools you need to carry.

• Safety: Provides a first and crucial check for live voltage, helping to prevent electrical shocks.

• Convenience: Its compact size makes it easy to store in a pocket or tool pouch, ensuring it's always within reach.

• Cost-Effective: An affordable solution that performs multiple diagnostic and mechanical tasks.

Ideal For: Professional electricians, facility maintenance staff, appliance repair technicians, and savvy do-it-yourselfers.

In summary, this multi-function test pencil is a practical, reliable, and indispensable tool for anyone who needs to perform basic electrical diagnostics and screwdriving tasks safely and efficiently.
