High Brightness Neon Voltage Tester & Screwdriver, Multifunctional Electrical Test Pen for Electricians and Household Use

Product Name: Professional Neon Voltage Tester & Screwdriver - High-Visibility Multi-Function Electrical Test Pen

https://via.placeholder.com/500x300?text=Professional+Neon+Voltage+Tester

Overview:
This professional-grade neon voltage tester is an essential, reliable, and versatile tool designed for electricians, technicians, and DIY enthusiasts. It combines the fundamental safety function of AC voltage detection with the practicality of a flat-head screwdriver, all in a durable, high-visibility colored casing for easy identification and added safety on the job site.

Key Features & Functions:

1. AC Voltage Detection: The core function. The tester is designed to detect the presence of AC voltage (typically 90V-500V or 100V-500V) in electrical circuits, outlets, switches, and cables. This is the first critical step before working on any electrical component.

2. High-Brightness Neon Indicator: Features a clear neon bulb (Neon Lamp). When voltage is detected, the neon bulb illuminates brightly, providing an unambiguous visual warning. Neon indicators are known for their reliability and are not dependent on batteries.

3. Integrated Flat-Head Screwdriver Tip: The tip is a precision, magnetized, single-slotted (flat-head) screwdriver. This allows for quick screw tightening/loosening on outlet faceplates, switch screws, and terminal connections without switching tools, significantly improving efficiency.

4. Professional High-Visibility Design: The body is crafted from durable, high-quality insulation material in a bright, vibrant color (e.g., Electrician Yellow, Orange, or Red). This makes the tool easy to spot in a toolbox or if dropped in a dimly lit work area, reducing the risk of being lost or accidentally left behind.

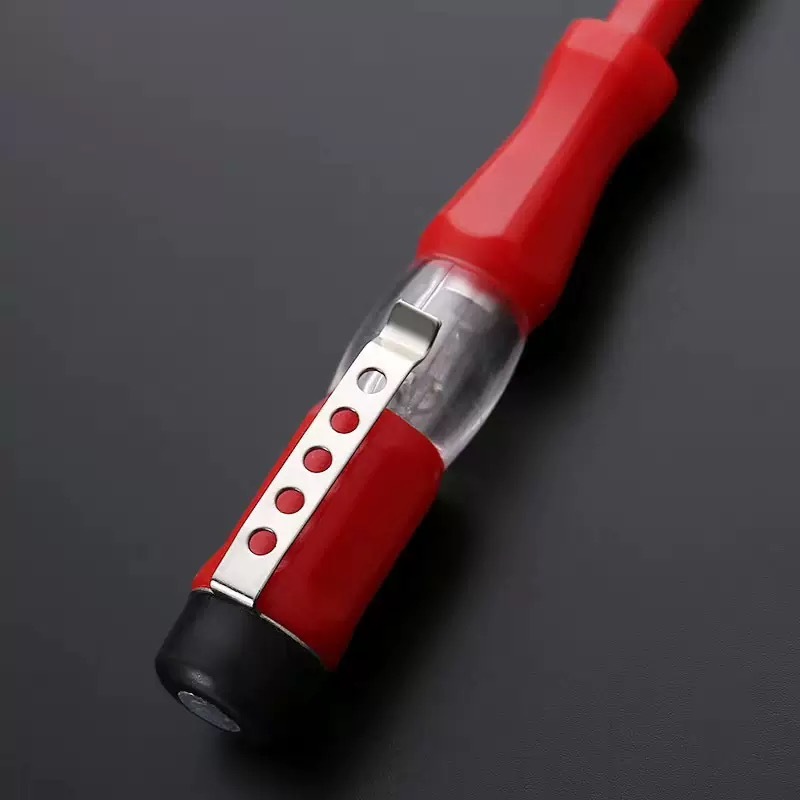

5. Pocket Clip: Includes a sturdy metal or plastic pocket clip, allowing for convenient and safe storage on a tool belt, shirt pocket, or jacket, keeping it readily accessible.

6. Safety Protection: The transparent insulating sleeve and elongated body provide a safe barrier between the user's hand and the live circuit, helping to prevent accidental electric shock when used correctly.

7. Durable & Simple Construction: No batteries required. Its purely electrical-mechanical design ensures it's always ready for use and highly resistant to wear and tear under normal conditions.

Technical Specifications (Typical):

• Voltage Detection Range: AC 90/100V - 500V / 1000V (Check specific product label)

• Indicator Type: Neon Light (氖泡 - Nèi Pào)

• Screwdriver Tip: Single Slot / Flat Head (一字头 - Yī Zì Tóu)

• Insulation: Fully Insulated Shaft

• Material: Engineering Plastic Body, Steel Driver Shaft

• Color: Bright Yellow, Orange, or Red

• Compliance: Meets or exceeds relevant international safety standards (e.g., IEC, CE standards - check specific product certification).

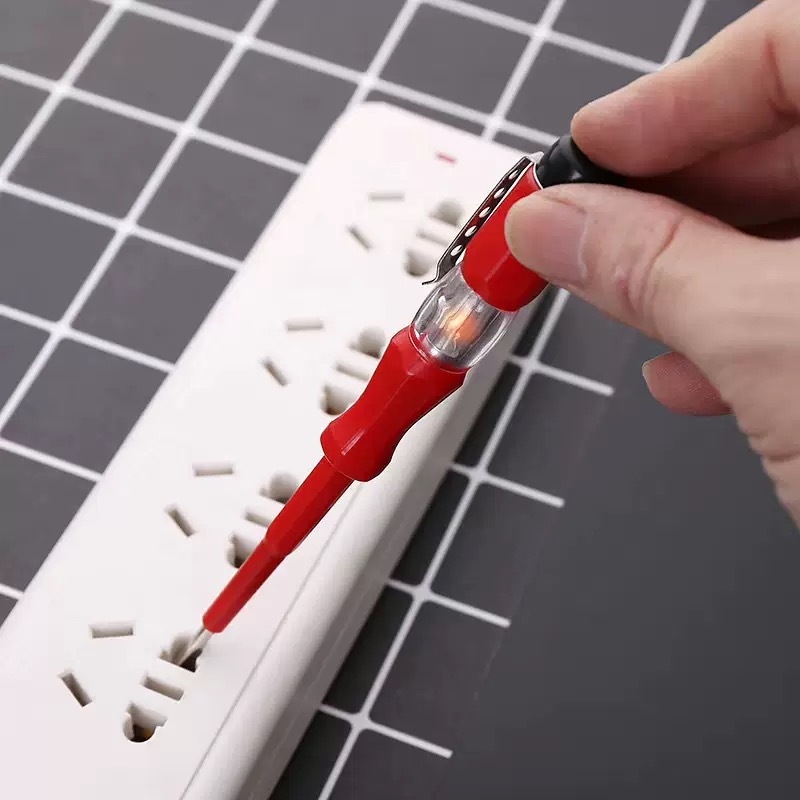

How to Use for Voltage Testing:

1. Safety First: Ensure your hands are dry and you are standing on a dry surface.

2. Contact Tip: Place the metal tip of the screwdriver into the live/hot terminal (e.g., the smaller slot in an outlet) or onto the wire/conductor you want to test.

3. Finger Contact: Place your thumb or finger on the metal contact (usually at the end cap or a designated spot on the side) of the tester.

4. Read Indicator: If AC voltage is present, the neon bulb will glow brightly. A glowing light means DANGER - voltage is present.

5. No Light: If the bulb does not glow, it indicates no voltage is detected (note: it cannot reliably detect low voltage or DC voltage).

Important Safety Notes & Limitations:

• NOT a Multimeter: This tool confirms the presence of voltage, not the exact value.

• Verify Operation: Always test the pen on a known live circuit (e.g., a functioning outlet) before and after use to ensure it is working correctly.

• Limited Use: Cannot be used to test for DC voltage or very low voltages.

• Proper Use: Follow all electrical safety procedures. The presence of voltage must be determined phase-to-earth (using the finger contact method). It may not light up in a phase-to-phase testing scenario without a path to earth (through the user's body).

• Professional Judgment: While excellent for basic testing, complex troubleshooting may require a digital multimeter.

Ideal For:

• Electricians and Maintenance Technicians

• HVAC Installers and Repairers

• Appliance Repair

• Homeowners for basic electrical safety checks (e.g., checking if an outlet is live before changing a faceplate)

• General DIY projects involving electrical components

Package Includes:
1 x Professional Neon Voltage Tester/Screwdriver

Disclaimer: Always prioritize safety. Use this tool as part of a comprehensive electrical safety procedure, not as the sole method for verifying a circuit is de-energized. Understand its limitations.
