Neon Tester (Test Pen) - English Introduction

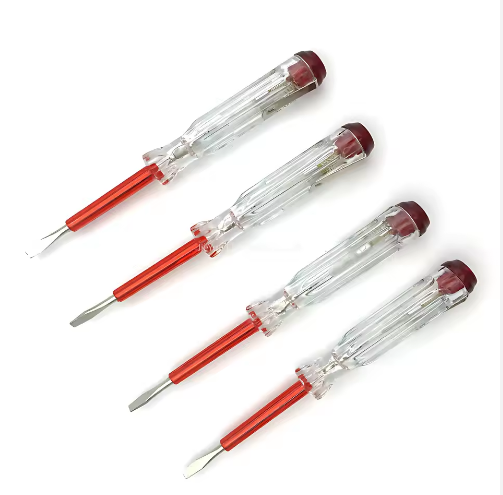

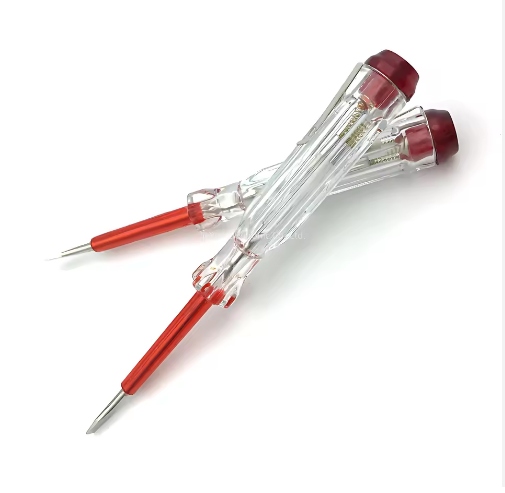

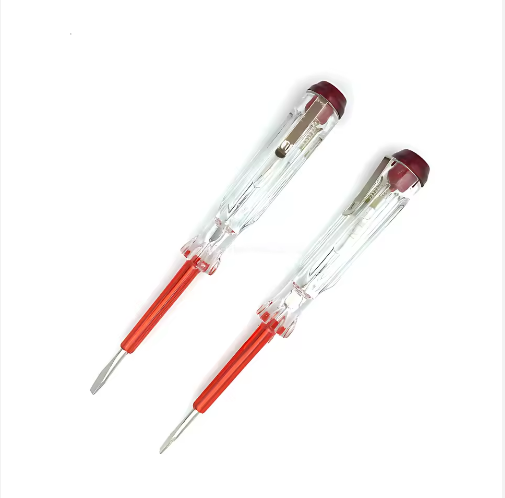

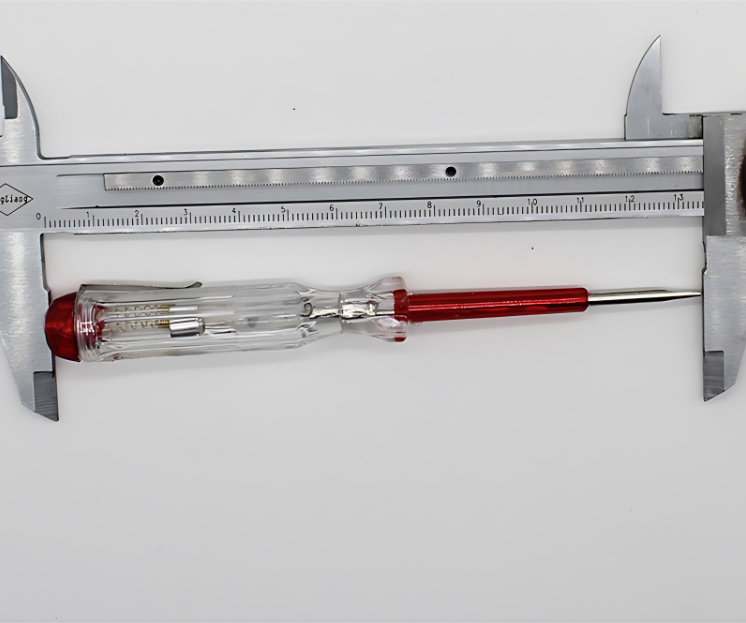

A neon tester, commonly known as a test pen or voltage tester, is a simple, handheld electrical tool used primarily to check for the presence of AC voltage in circuits, outlets, switches, or conductors. It is a fundamental and widely used device for basic electrical safety checks.
1. Working Principle:
The core operation relies on capacitive coupling and gas discharge. When the metal tip contacts a live (phase) conductor, a tiny capacitive current flows through the tester's internal high-resistance resistor (typically around 1-2 MΩ), through the neon lamp, and through the user's body to earth ground. This minimal current (microamps) is sufficient to ionize the neon gas inside the bulb, causing it to glow visibly. If the tip contacts a neutral conductor or there is no voltage, no complete circuit is formed, and the lamp does not light.

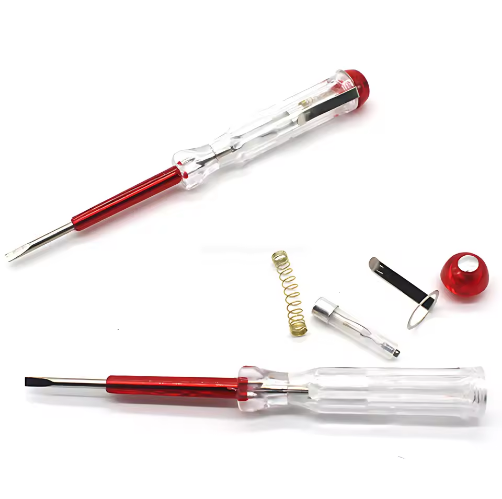

2. Key Components:
-
Metal Tip/Probe: For contacting the test point.
-
High-Value Resistor (Current Limiting): Limits the current to a safe level (usually less than 1mA) for user protection.
-
Neon Lamp (Neon Bulb): The indicator. It glows (often orange-red) when voltage is detected.
-
Transparent Insulating Barrel: Houses the components and allows visibility of the neon lamp.
-
Metal Cap/Contact Plate (at rear end): Provides the path through the user's body to ground. The user must touch this part during operation.
-
Spring: Holds components in place and ensures electrical contact.
-
Insulated Body: Protects the user from accidental shock.
3. Typical Specifications & Usage:
-
Voltage Range: Commonly designed for AC voltages from 100V to 500V (e.g., standard 120V/230V mains).
-
Operation: To test, the user holds the pen, touches the rear metal contact, and places the tip on the point to be tested. A glow indicates live voltage.
-
Functions:
-
Distinguish between Live (Phase) and Neutral wires.
-
Check if an outlet or terminal is energized.
-
Verify basic circuit continuity (for live circuits).
-
Identify approximate voltage level (brighter glow often indicates higher voltage within its range).
4. Advantages:
-
Simple, Inexpensive, and Durable.
-
No Batteries Required. Operates solely from the detected voltage.
-
Quick and Easy for basic live/dead checks.
-
Intrinsically Safe due to the high-resistance current-limiting design when used correctly.
5. Limitations & Safety Notes:
-
Does Not Measure Voltage Magnitude precisely, only indicates presence.
-
Cannot Detect DC Voltage reliably (neon lamp requires AC to glow continuously).
-
May not glow on very low voltages or well-insolated circuits (like some Class II appliances) due to insufficient capacitive current.
-
User must be properly grounded (by touching the rear cap) for it to work. Insulated gloves or shoes may prevent operation.
-
Not a comprehensive safety tool. It should never be used as the sole verification that a circuit is safe to work on. Always verify with a more reliable meter (like a multimeter) and follow lock-out/tag-out procedures for any electrical work.
-
Must be tested on a known live source first to confirm it's functioning before relying on a "no glow" result.
Common English Names:
In summary, the neon test pen is a classic, essential tool for electricians and homeowners for preliminary voltage detection, valued for its simplicity and direct visual indication, but it must be used with an understanding of its limitations and in conjunction with other safety practices.
