1. Product Overview

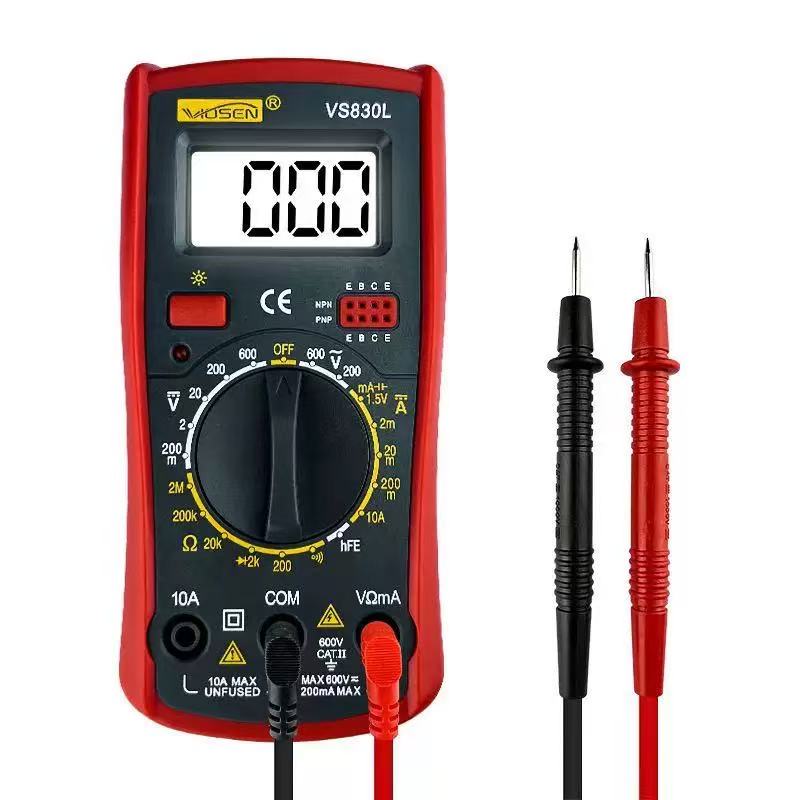

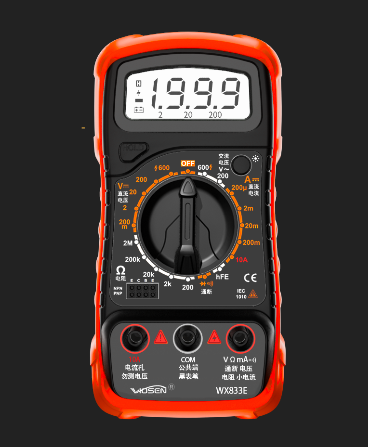

The ProMaster Home+ is an advanced, high-precision digital multimeter designed for modern home users, DIY enthusiasts, and electronics hobbyists. It combines laboratory-grade accuracy with powerful, easy-to-use features, making it a reliable companion for a wide range of electrical measurements. Its compact and portable design ensures confident diagnosis and troubleshooting anytime, anywhere.
2. Key Features
High Accuracy and True RMS (Optional):
Provides highly accurate DC/AC voltage, current, and resistance readings.
(Advanced Model) True RMS functionality ensures precise measurement of non-sinusoidal AC waveforms, essential for diagnosing modern electronic equipment and variable-speed drives.
Versatile Comprehensive Tests:
Basic measurements: DC/AC voltage, DC/AC current, resistance, capacitance, frequency, diode test, circuit continuity (with beeper).
Advanced features: Transistor (hFE) test, temperature measurement (optional thermocouple), and NCV (non-contact voltage) detection for safely checking live circuits.

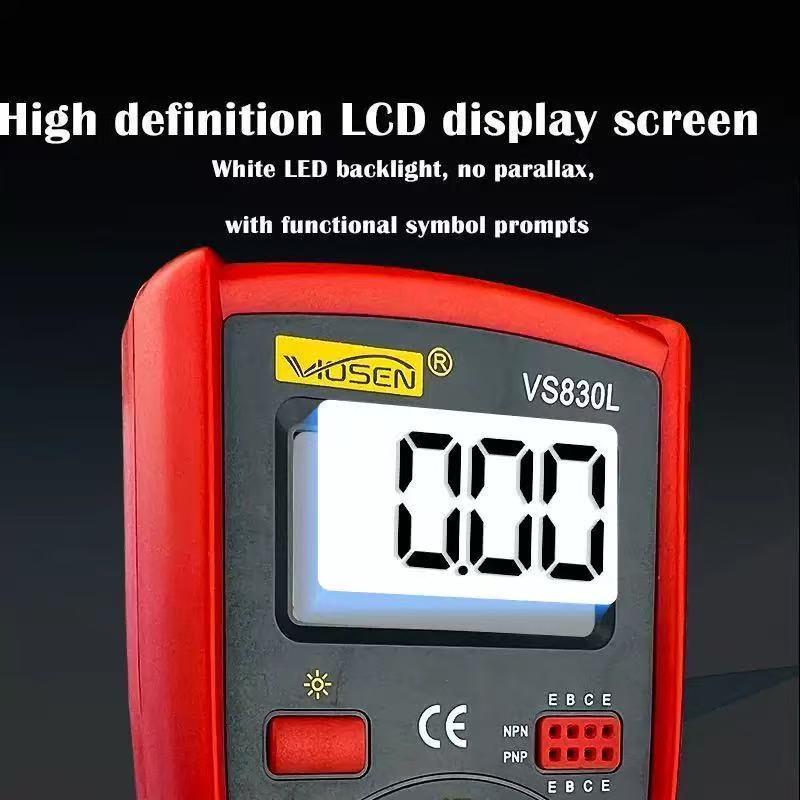

High-Definition Backlit LCD Display:
Large, clear, easy-to-read, high-contrast digital screen.
Dual Backlight (Blue/White): Perfectly illuminates the display, ensuring clear viewing even in dimly lit areas (e.g., distribution cabinets, basements) or during nighttime operations.

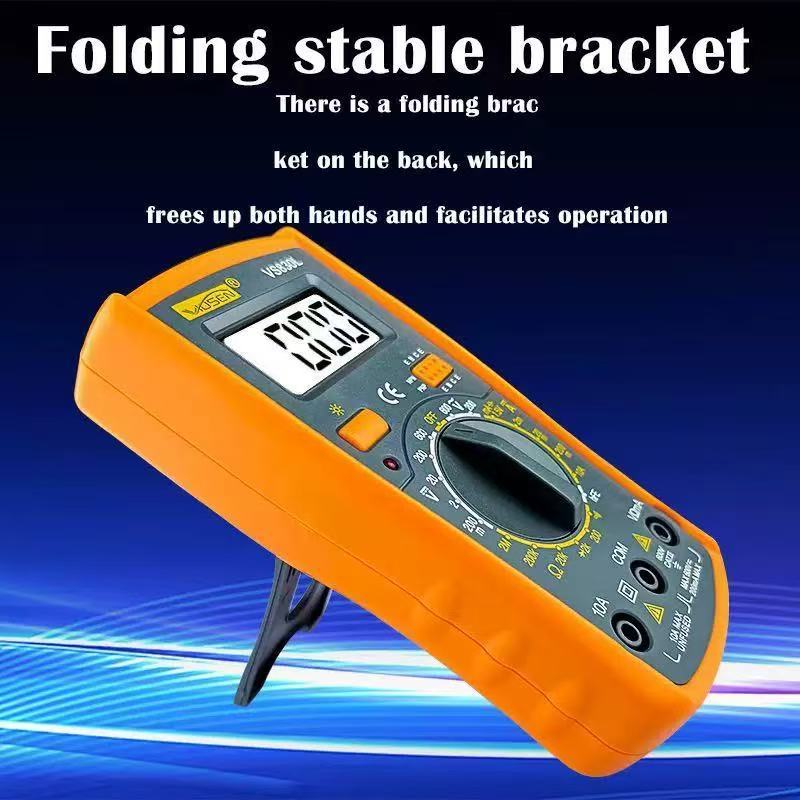

Compact, Lightweight, and Portable Design:
Ergonomically designed for a comfortable grip.
Equipped with a protective rubber boot for enhanced shock resistance and a secure hold.
Perfect for your toolbox, maintenance cart, or backpack.
Burn and Overload Protection:
Equipped with a built-in fuse protection system and high-energy fuses (e.g., F500mA/600V, F10A/600V).
Full-range overload protection protects the meter and the user from accidental connection to high-voltage power.
User-Friendly and Safe Operation:
Data Hold Function: Freezes the displayed reading for easy recording, even in difficult-to-see locations.
Low Battery Indicator.
Safety Standards Compliance: Designed to comply with international safety standards (such as IEC 61010 CAT III 600V), this device ensures safe use in home and commercial electrical environments.
A rotary switch allows for quick and easy selection of measurement functions.
3. Technical Specifications
Function Range Accuracy
DC Voltage 200mV/2V/20V/200V/600V ±(0.5%+2 digits)
AC Voltage 2V/20V/200V/600V ±(0.8%+3 digits)
DC Current 2mA/20mA/200mA/10A ±(1.0%+2 digits)
AC Current 2mA/20mA/200mA/10A ±(1.5%+3 digits)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+2 digits)
Capacitance 2nF/20nF/200nF/2μF/20μF/200μF ±(2.5%+5 digits)
Frequency 2kHz/20kHz/200kHz ±(0.1% + 3 digits)
Normal Display: 3.5 to 4 digits (1999 counts)

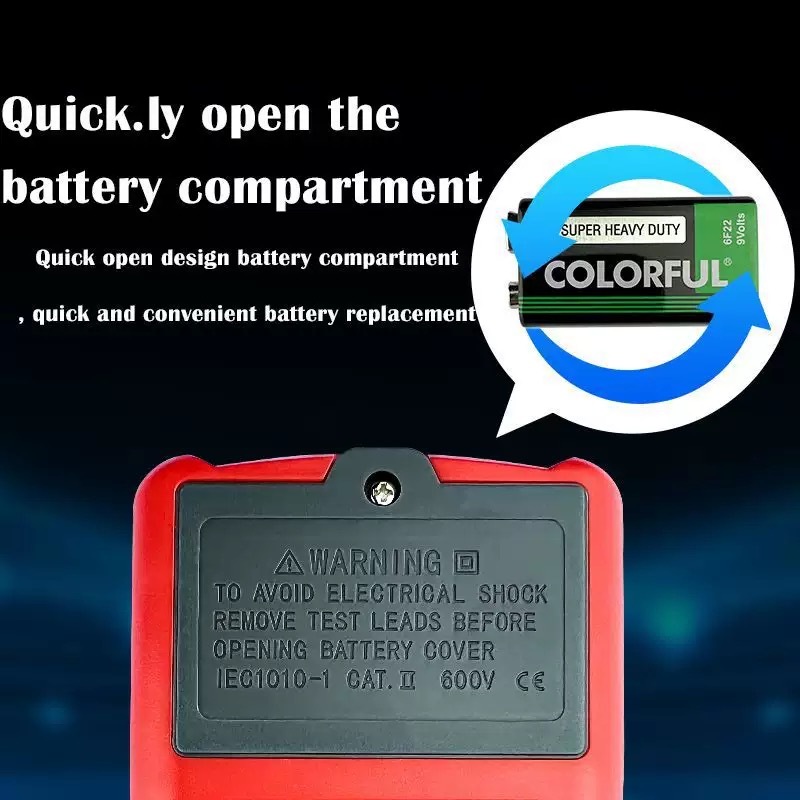

Power Supply: 9V Battery
Dimensions: Approximately 135mm x 70mm x 30mm
Weight: Approximately 250g (including leather case)
4. Package Contents
1 ProMaster Home+ Digital Multimeter
1 Rubber Protective Case
1 pair of test leads (red and black)
1 9V Battery
1 User Manual (multi-language)
5. Ideal Applications
Home and DIY: Troubleshoot wiring, outlets, switches, batteries, and appliances.
Automotive: Test car batteries, alternators, fuses, and circuits.
Electronics Hobbyists: Repair and build circuits, test components (resistors, capacitors, diodes, transistors).
HVAC Technicians: Basic electrical diagnostics.
General Maintenance: An essential tool for any property manager or handyman.
Conclusion:
The ProMaster Home+ Digital Multimeter is more than just a tool; it allows you to understand and solve electrical problems safely and efficiently. Its combination of high accuracy, ruggedness, and portability makes it an excellent choice for those who value compact portability and reliability.
