Automotive Test Light Applications in Automotive Repair
Automotive test lights, also known as circuit testers or test pens, are essential tools for diagnosing electrical problems in vehicles. They help mechanics and DIY enthusiasts quickly and efficiently check power, ground connections, and circuit continuity.
How an Automotive Test Light Works

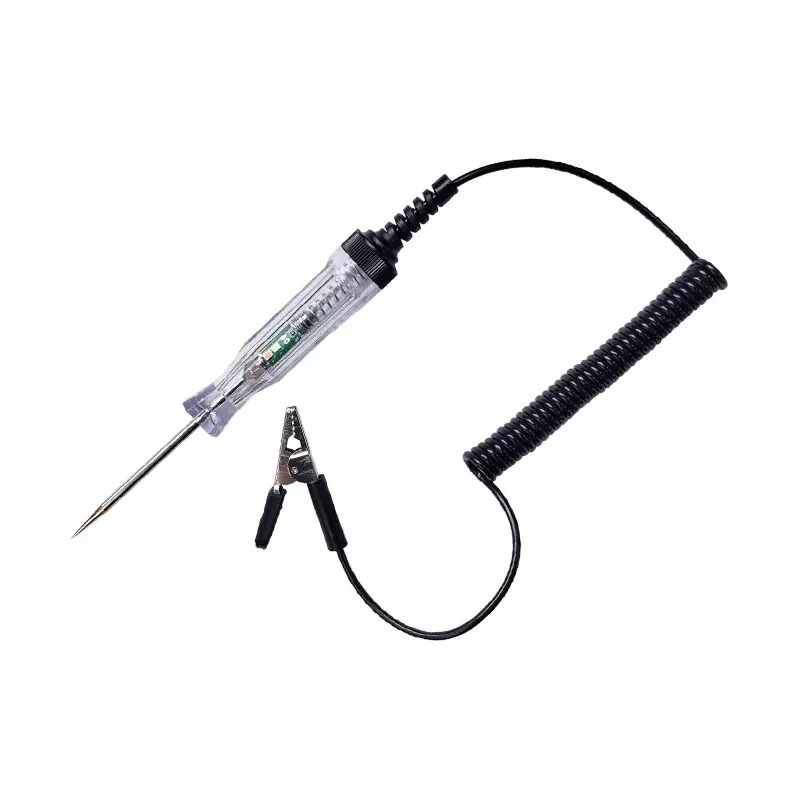

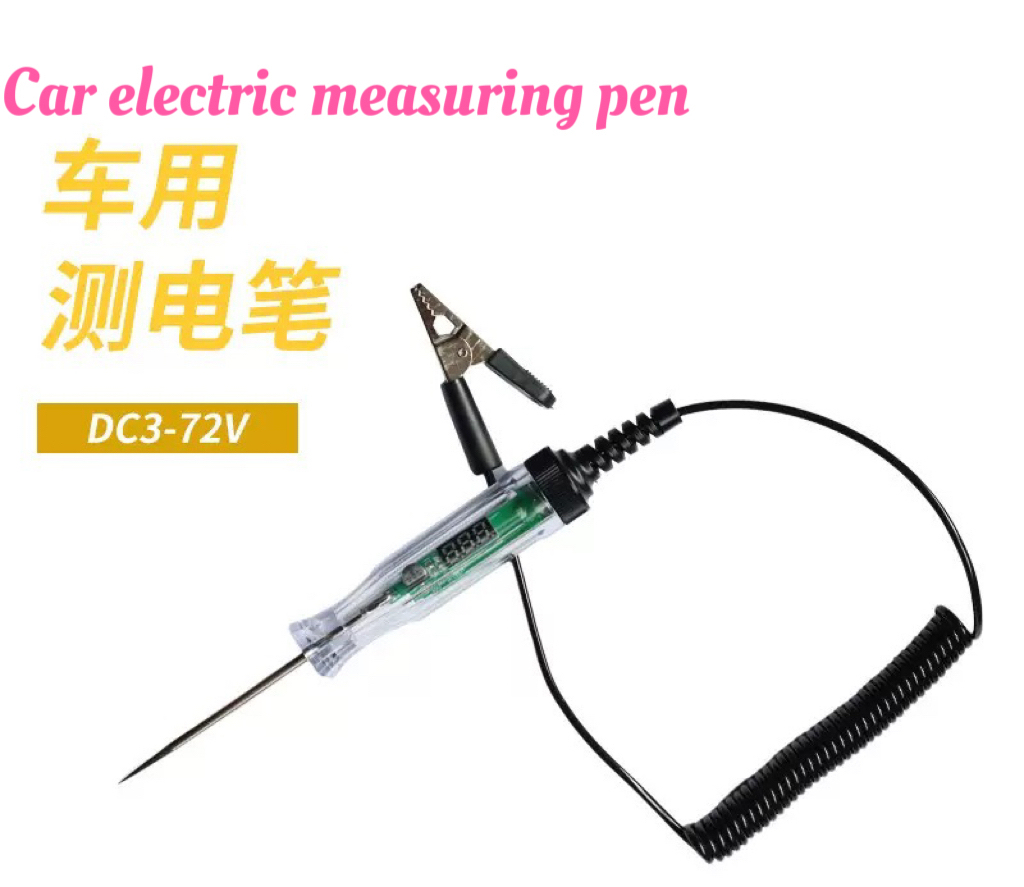

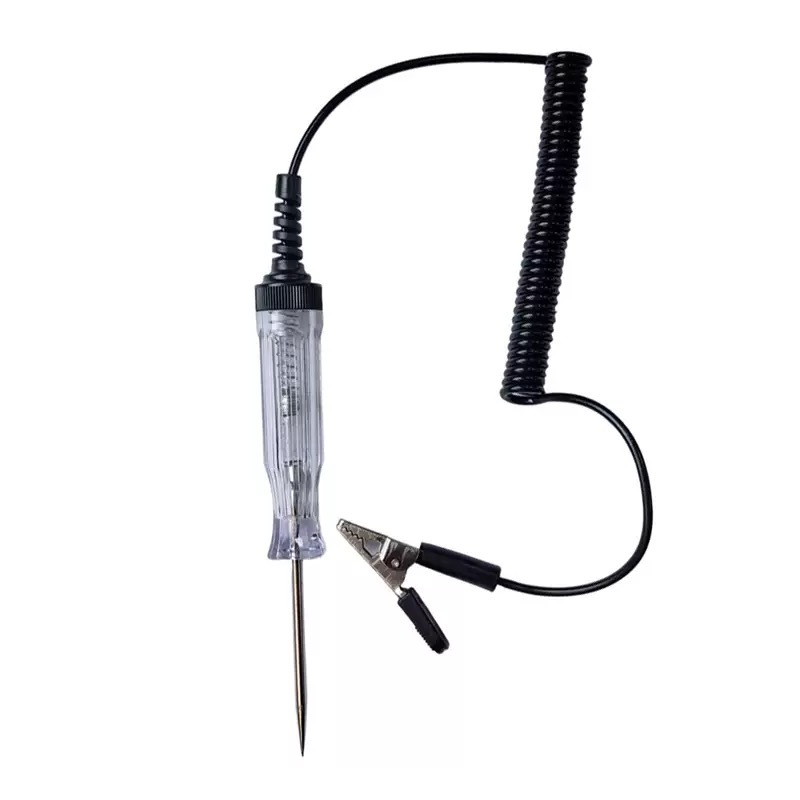

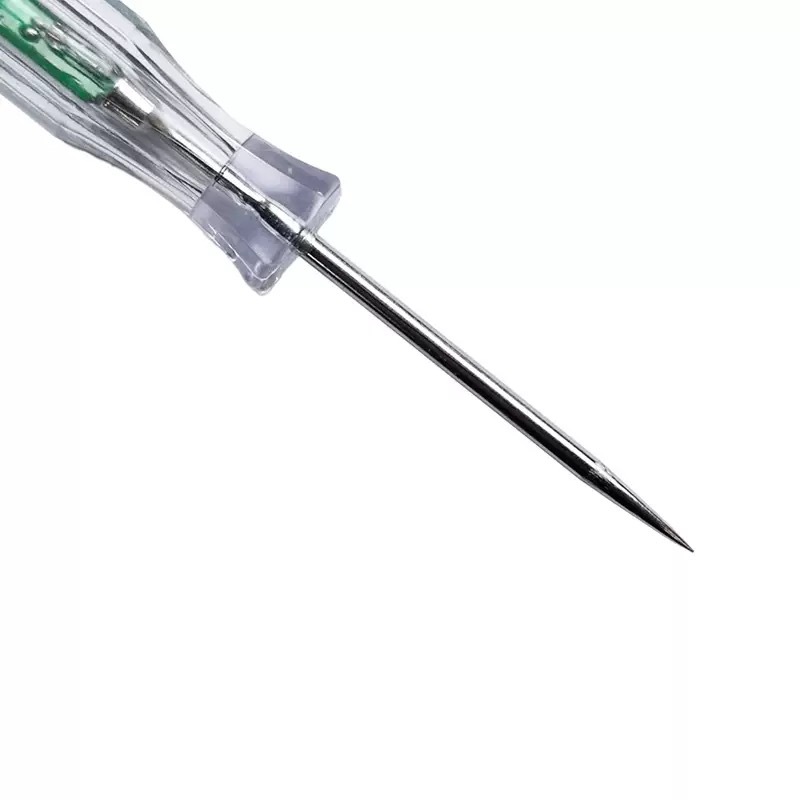

A basic test light consists of a pointed probe, a wire with an alligator clip, and a built-in bulb or LED. How to Use:
Connect the alligator clip to a known ground point (e.g., the chassis of the car).
Touch the probe to the wire or terminal under test.
12V-24V Automotive Test Light with LEDCar Electrical Test Pen with 5 LED IndicatorsWaterproof Automotive Test Light for MechanicsObserve the indicator light - If the indicator light is on, the circuit is energized.
Applications in Automotive Repair
Check fuses and relays - A test light can verify if a fuse is blown by testing both ends of the fuse.
Troubleshoot switches - It helps determine if a switch (e.g., a brake light switch) is functioning properly.
Identify a broken wire - If one end of a wire has power but the other does not, there may be a broken wire.
Test sensors and connectors - Mechanics use test lights to confirm that sensors are receiving the correct voltage.
Pros
Simple and affordable – Easier to use than a multimeter for basic checks.
Quick diagnosis – Instantly shows live circuits.
However, for accurate voltage measurements, a digital multimeter is still required.
Conclusion
The car test light is an essential tool for automotive electrical troubleshooting. While it cannot replace advanced equipment, its simplicity and ease of use make it an important tool for quick checks in automotive repairs.
