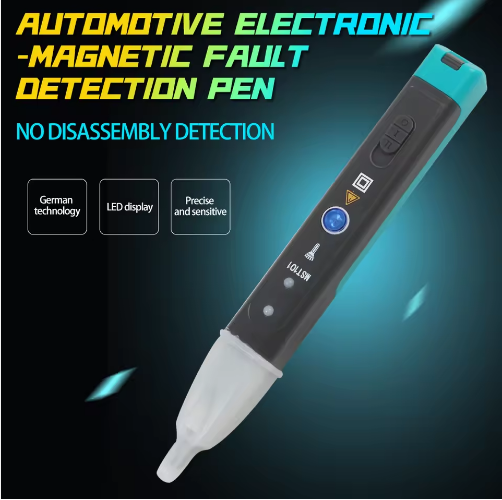

MST-101 Automotive Ignition System and Circuit Tester (Electromagnetic Field Fault Indicator)
Product Slogan: The professional choice, providing fast and reliable ignition system diagnostics.
1. Product Overview
The MST-101 Automotive Ignition System and Circuit Tester is an advanced handheld diagnostic tool designed for mechanics, technicians, and automotive enthusiasts. It simplifies the troubleshooting process for ignition systems and circuits by visually and audibly detecting electromagnetic fields (EMF) and high-voltage sparks.
Simply bring the probe close to a live component, and the MST-101 provides instant feedback, enabling safe and efficient diagnostics without complex multimeter settings or direct electrical contact. It is an essential tool for quickly identifying faults in spark plugs, ignition coils, wires, and various sensors.
2. Key Features and Benefits
Non-contact Voltage and Electromagnetic Field Detection:
Benefits: Safely tests high-voltage ignition components (spark plug wires, ignition coils, distributor) without physical contact, eliminating the risk of electric shock and preventing component damage.
Visual and Auditory Indicators:

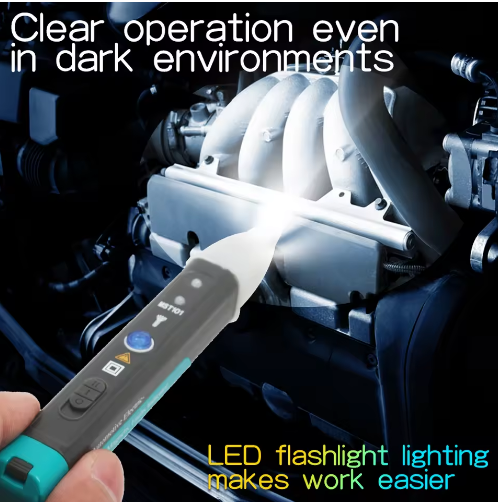

Advantages: Equipped with high-brightness LED indicators and a built-in buzzer. The indicator flashes and the buzzer sounds in sync with the detected signal, easily identifying intermittent faults even in noisy environments or strong sunlight.
Precise Signal Strength Indication:
Advantages: The frequency of the LED flashing and buzzer sounds is directly related to the electromagnetic field strength. A strong, stable signal indicates a normal component, while a weak or unstable signal indicates a fault.
Multi-functional Testing Capabilities:
Advantages: Can test a variety of components, including:
Ignition coils (cylinder head ignition coils, conventional ignition coils)
Spark plug wires
Distributor caps and distributor caps
Fuel injectors (injection pulses)
Crankshaft and camshaft position sensors
And other pulse electromagnetic sources.
Extremely Easy to Use:
Advantages: No complex setup or specialized technical knowledge required. Simply turn on the device and bring the probe close to the component under test. The intuitive design provides immediate "pass/fail" diagnostic results.
Durable and Portable Design:

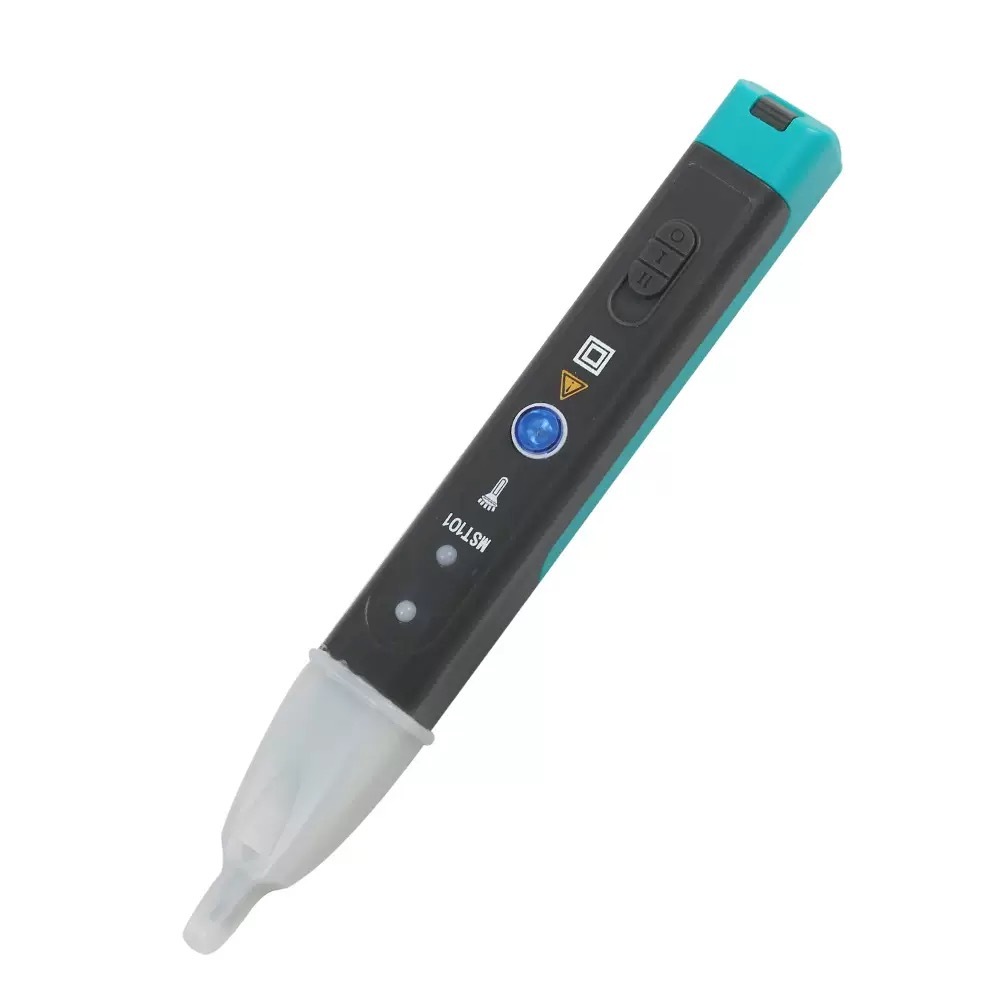

Advantages: Features a robust pen-shaped casing for easy storage in a toolbox or pocket. Designed for the harsh environments of professional repair shops or DIY workshops.
3. Technical Specifications
Specifications
Model: MST-101
Testing Method: Electromagnetic Field (EMF) Induction
Indicator Light: Red LED and buzzer (synchronized flashing/beeping)

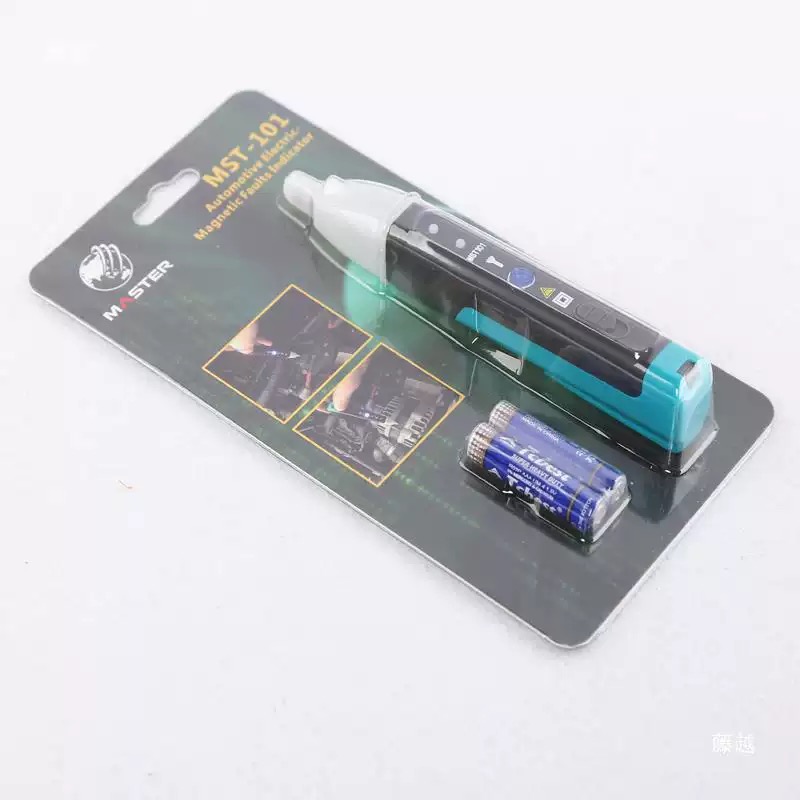

Power Supply: 2 AAA batteries (1.5V)
Operating Voltage: 3V DC
Testing Range: Suitable for standard 12V automotive systems
Size: Pen-shaped, approximately 160 mm in length
Weight: Lightweight (approx. 50g without batteries)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Applications: Gasoline engine ignition systems, fuel injectors, sensors
4. Usage Instructions
Testing Ignition Systems (e.g., spark plug wires):
Preparation: Ensure the vehicle is parked in a well-ventilated area. Start the engine or turn the crankshaft.
Power On: Press and hold the button on the MST-101 tester.

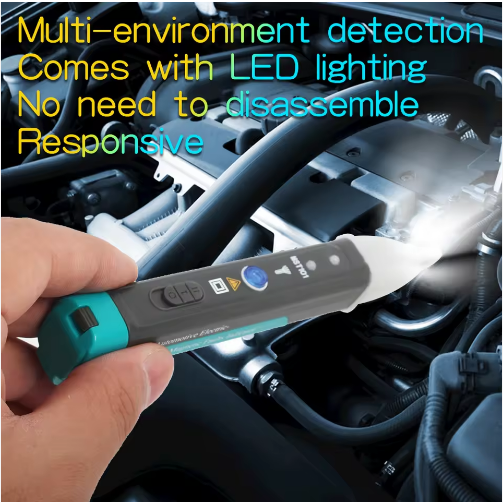

Test: Bring the tester's metal probe close (but not in contact with) the spark plug wires or the insulation of the ignition coil.
Result Interpretation:
Strong, rhythmic flashing/beeping: The ignition assembly is receiving a strong, stable high-voltage pulse and is functioning normally.
Weak or no flashing/beeping: Indicates a weak or no spark. The fault may be in the wires, ignition coil, spark plugs, or related control unit.
Intermittent/irregular flashing: Indicates an intermittent fault, such as a broken wire within the insulation or a faulty ignition coil.
Testing Fuel Injectors:
With the engine running or started, bring the tester probe close to the fuel injector body.
Rhythmic flashing/beeping indicates the injector is receiving pulse signals from the engine control unit (ECU).
Testing Sensors (e.g., crankshaft/camshaft sensors):
With the engine started, bring the tester close to the sensor. A flashing signal indicates that the sensor is activated and generating a magnetic pulse.
5. Target Users
Professional auto mechanics and technicians
Auto repair shop owners
DIY car enthusiasts and hobbyists
Racing teams and repair teams
Automotive engineering students
